FBH16TE035RV

General Electric - Molded Case

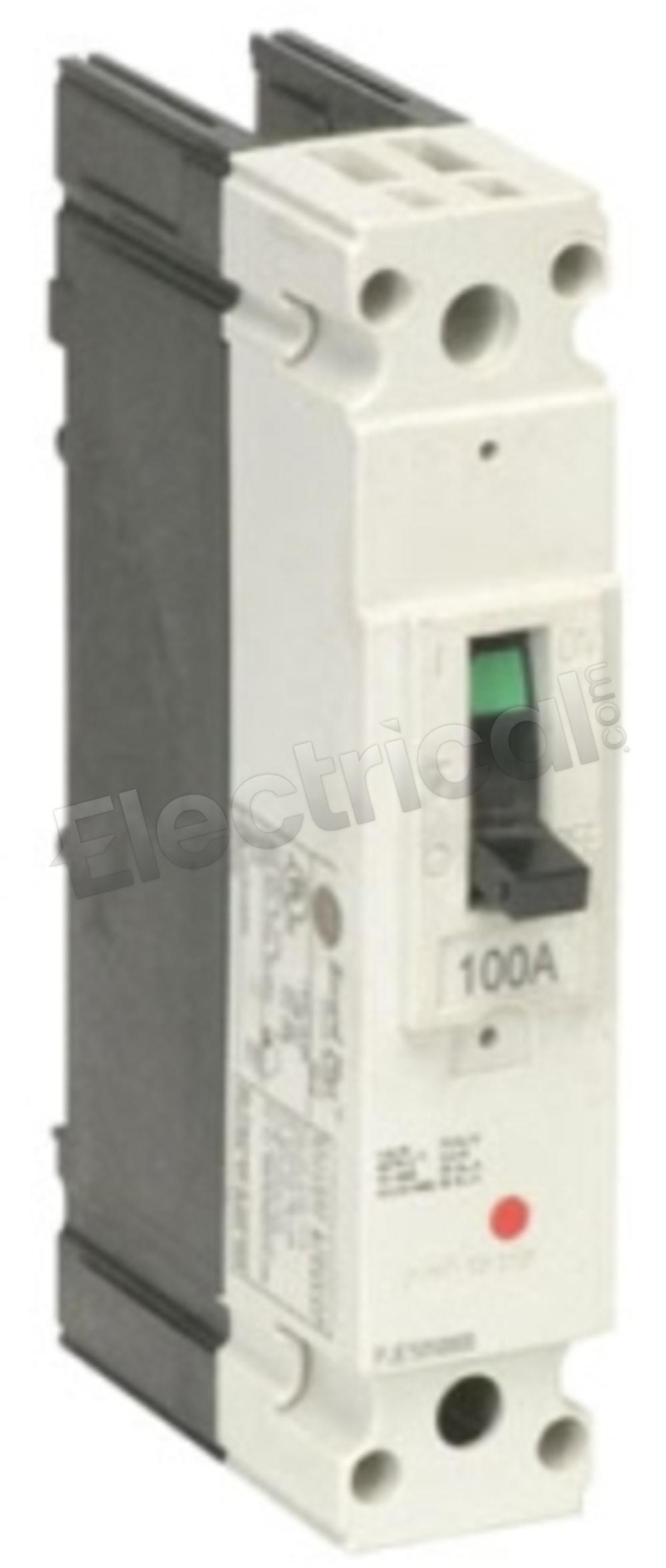

General Electric Molded Case FBH16TE035RV

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FBH16TE035RV Specifications

View Specifications

FBH16TE035RV General Electric Record Plus, type FBH, FB100 frame, 1P, 1PH, 35A, 600V, 100kA@480V, very high interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions, load side lug terminals and panel connections, fixed Thermal Magnetic, molded case circuit breakers

Manufacturer
General Electric
Subcategory
Molded Case
Family
Record Plus
Amperage
35
Voltage
600
Poles
1

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FBH16TE035RV Specifications:
Part NumberFBH16TE035RV
Manufacturers
General Electric
Sub-CategoryMolded Case
FamilyRecord Plus
TypeFBH
Weight1 lbs
Amperage35
Voltage600
Poles1
AIC Rating100kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase1
