FBV16TE035R

General Electric - Molded Case

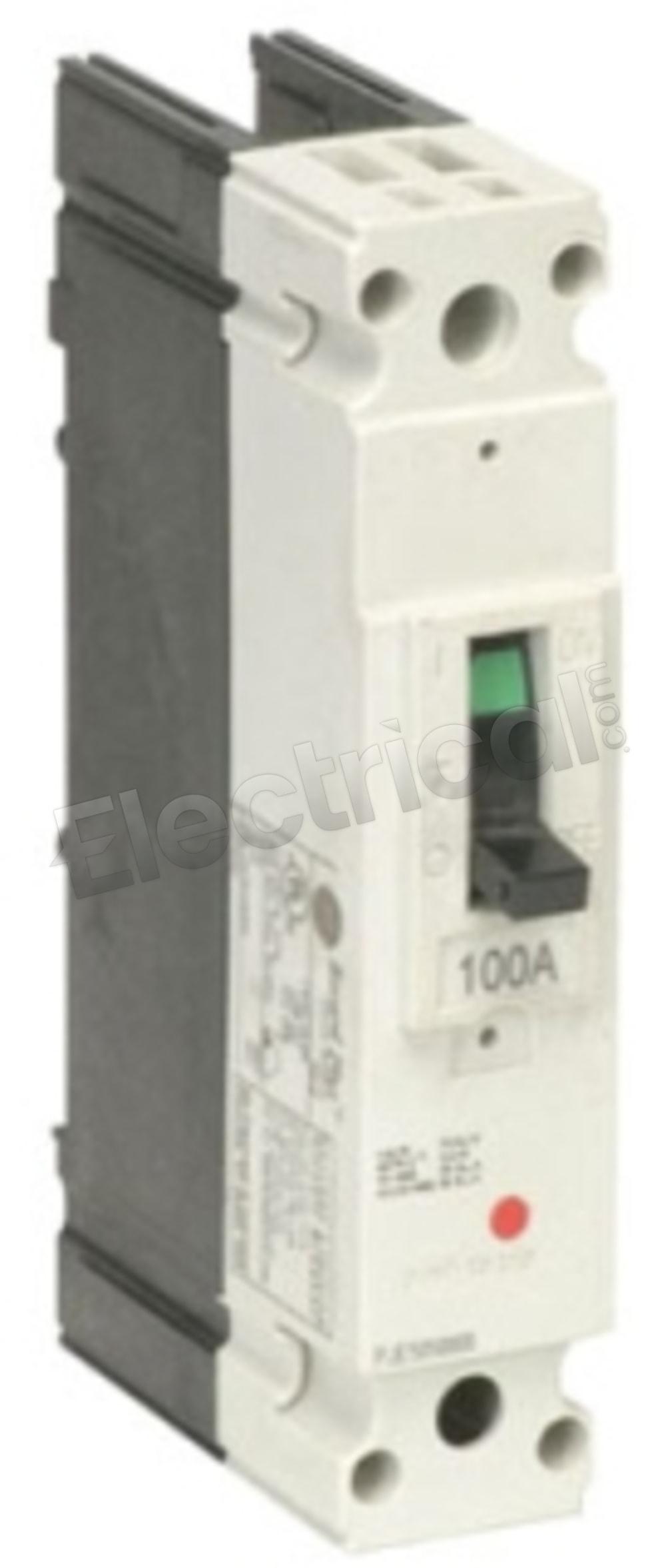

General Electric Molded Case FBV16TE035R

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FBV16TE035R Specifications

View Specifications

FBV16TE035R General Electric Record Plus, type FBV, FB100 frame, 1P, 1PH, 35A, 600V, 150kA@480V, standard interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions, lugs not included, fixed Thermal Magnetic, molded case circuit breakers

Manufacturer
General Electric
Subcategory
Molded Case
Family
Record Plus
Amperage
35
Voltage
600
Poles
1

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FBV16TE035R Specifications:
Part NumberFBV16TE035R
Manufacturers
General Electric
Sub-CategoryMolded Case
FamilyRecord Plus
TypeFBV
Weight1 lbs
Amperage35
Voltage600
Poles1
AIC Rating150kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase1
