FBV16TE090RV

General Electric - Molded Case

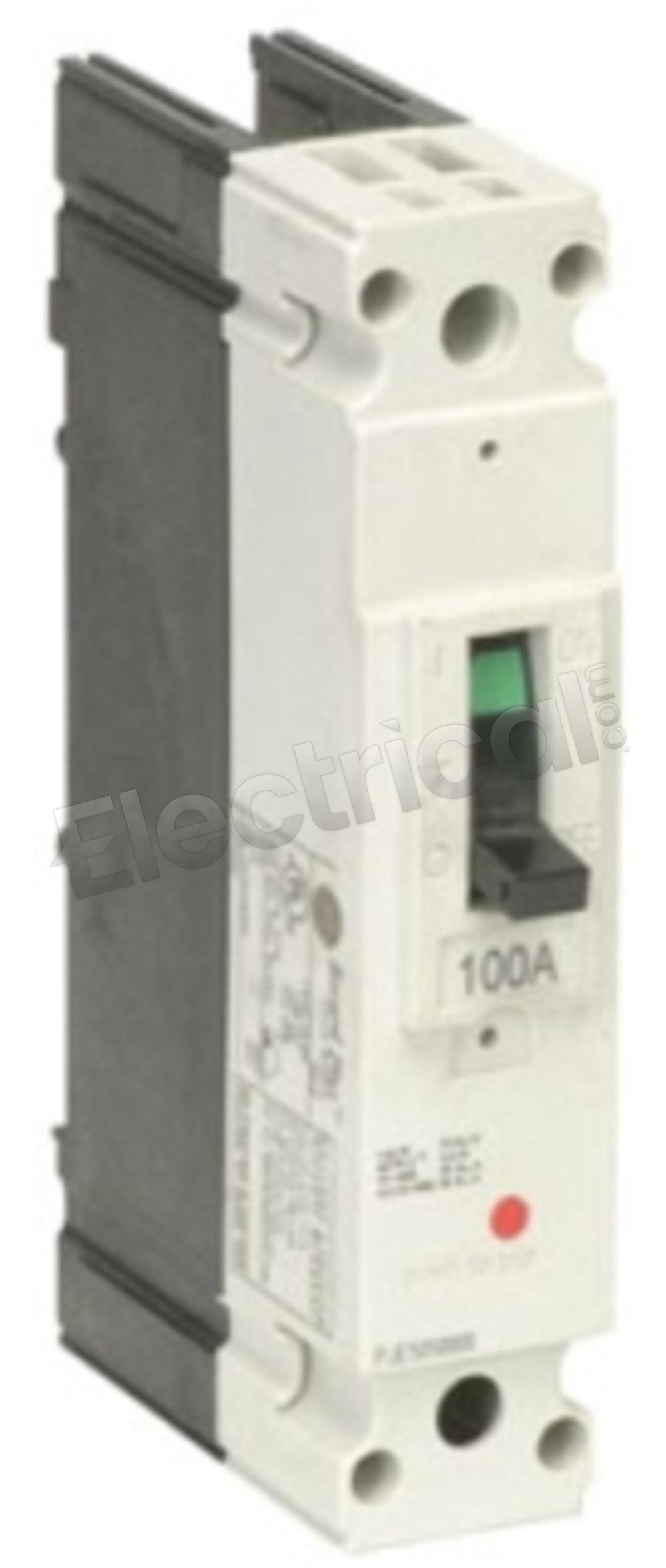

General Electric Molded Case FBV16TE090RV

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FBV16TE090RV Specifications

View Specifications

FBV16TE090RV General Electric Record Plus, type FBV, FB100 frame, 1P, 1PH, 90A, 600V, 150kA@480V, standard interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals and panel connections, fixed Thermal Magnetic, molded case circuit breakers

Manufacturer
General Electric
Subcategory
Molded Case
Family
Record Plus
Amperage
90
Voltage
600
Poles
1

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FBV16TE090RV Specifications:
Part NumberFBV16TE090RV
Manufacturers
General Electric
Sub-CategoryMolded Case
FamilyRecord Plus
TypeFBV
Weight1 lbs
Amperage90
Voltage600
Poles1
AIC Rating150kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase1
