FCS326TE045R2

General Electric - Molded Case

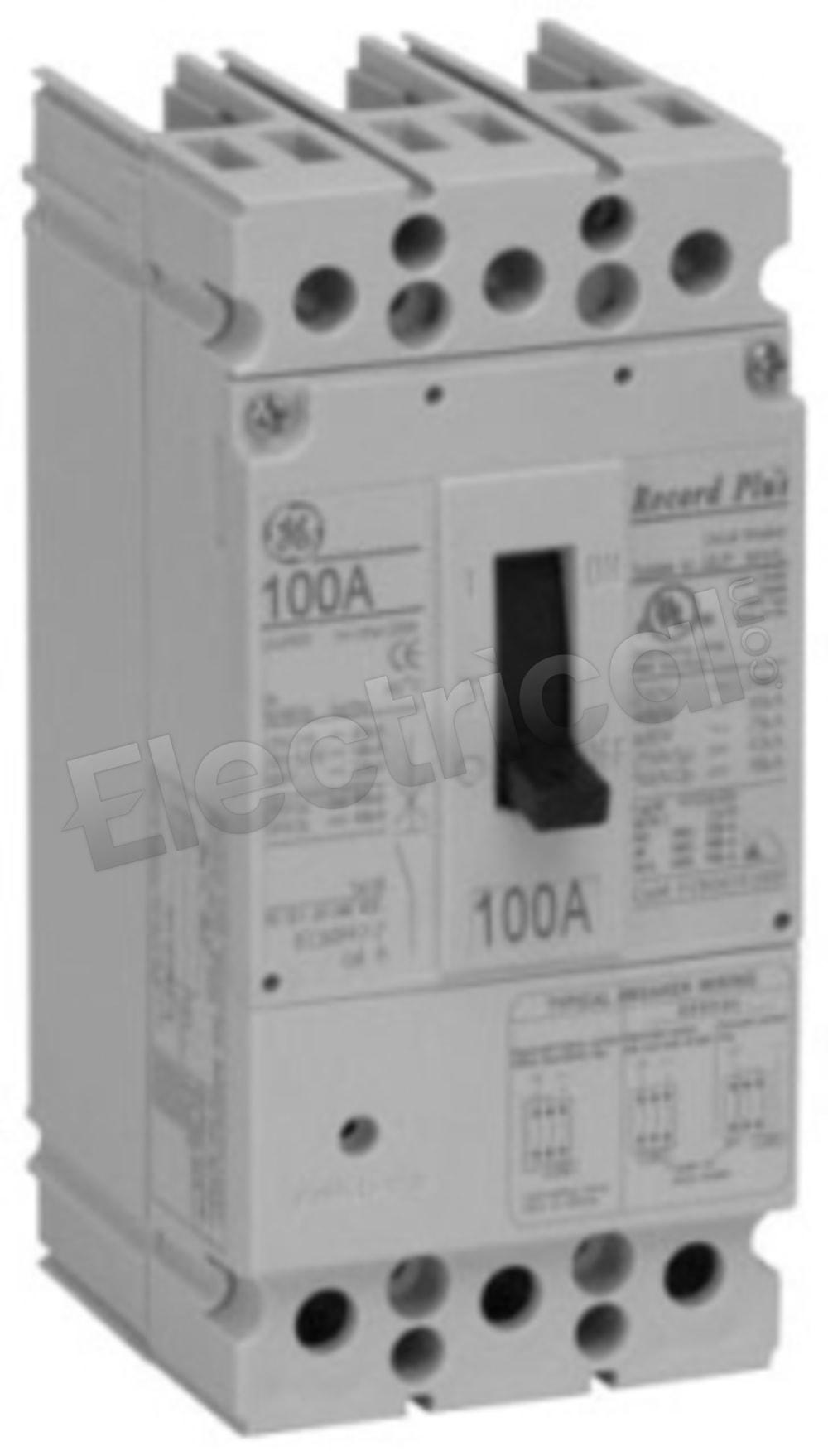

General Electric Molded Case FCS326TE045R2

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FCS326TE045R2 Specifications

View Specifications

FCS326TE045R2 General Electric Record Plus, type FCS, FC100 frame, 2P in 3P envelope, 1PH, 45A, 600V, 25kA@480V, standard interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals, fixed Thermal Magnetic, molded case circuit breakers

Manufacturer
General Electric
Subcategory
Molded Case
Family
Record Plus
Amperage
45
Voltage
600
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FCS326TE045R2 Specifications:
Part NumberFCS326TE045R2
Manufacturers
General Electric
Sub-CategoryMolded Case
FamilyRecord Plus
TypeFCS
Weight3 lbs
Amperage45
Voltage600
Poles2
AIC Rating25kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase1
