PKO25D3F0608
PKO25D3F0608
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
PKO25D3F0608 Specifications
View Full SpecificationsView Specifications

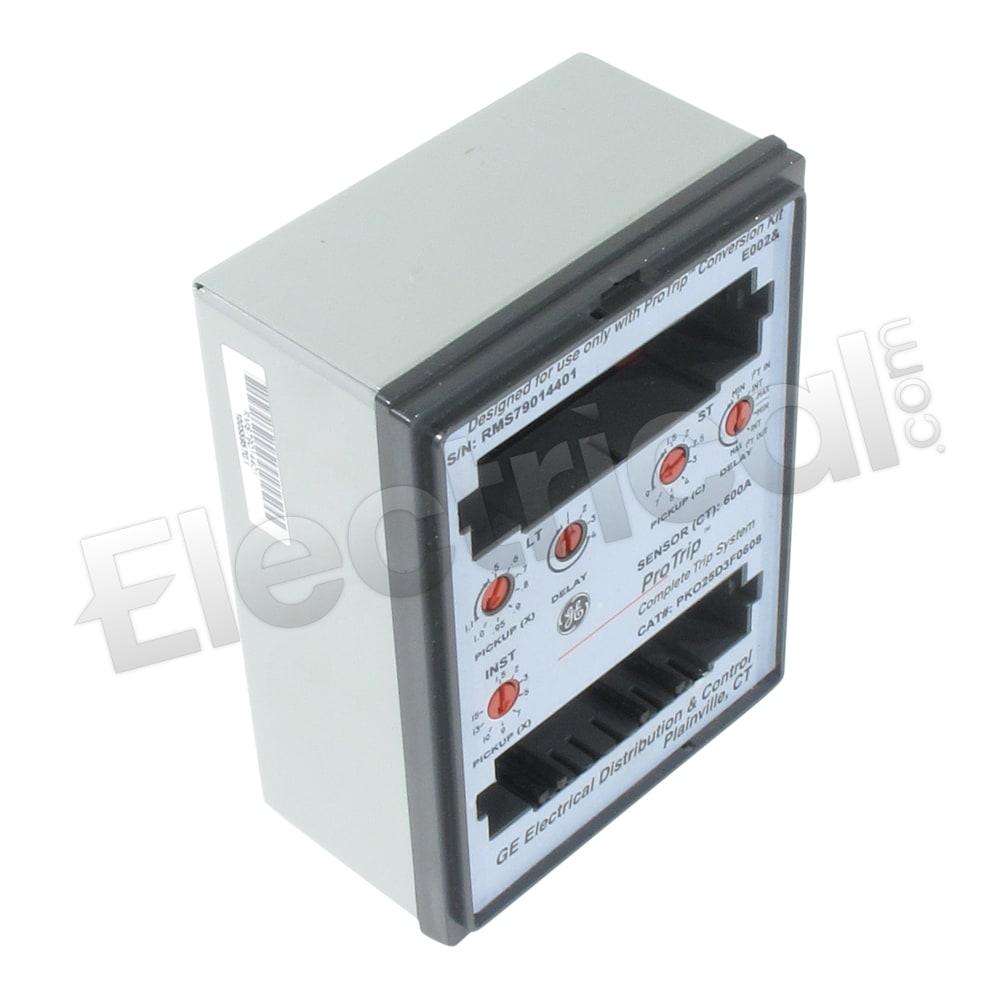

PKO25D3F0608, General Electric, trip units and programmers, ProTrip Solid State conversion kits, 3P, 3-wire, 600A sensor rating, 600V, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, replaces an electromechanical trip unit in 600A frame AK-25,AKU-15 low voltage power air circuit breakers
| Manufacturer | General Electric | Subcategory | Trip Units And Programmers |
| Family | ProTrip | Suit Frame | AK-25,AKU-15 |
| Voltage | 600 | ||
| Manufacturer | General Electric | ||
| Subcategory | Trip Units And Programmers | ||
| Family | ProTrip | ||
| Suit Frame | AK-25,AKU-15 | ||
| Voltage | 600 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
PKO25D3F0608 Specifications:
Part NumberPKO25D3F0608
Manufacturers
Sub-CategoryTrip Units And Programmers
FamilyProTrip
TypePK
Weight5 lbs
Suit FrameAK-25,AKU-15
Voltage600
ProtectionSolid State
Poles3
FunctionsLSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
Amperage Min600
Amperage Max600
