TKM836T300

General Electric - Trip Units And Programmers

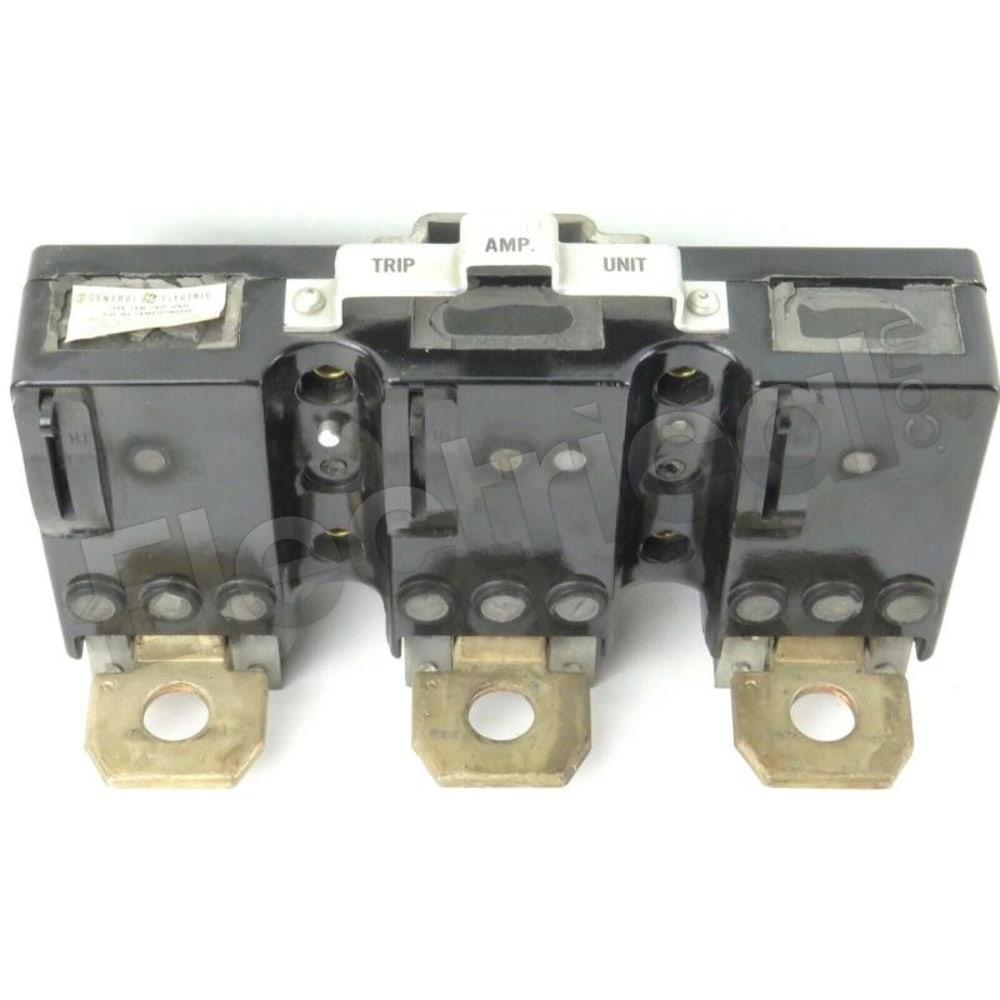

General Electric Trip Units And Programmers TKM836T300

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

TKM836T300 Specifications

View Specifications

TKM836T300, General Electric, K1200 Line, type TKM, interchangeable trip unit with LI, LI - Long-Time and Instantaneous trip functions, rated for 300A, suitable for TKM,THKM molded case circuit breaker frame types, UL listed, Thermal Magnetic trip units & circuit breakers

Manufacturer
General Electric
Subcategory
Trip Units And Programmers
Family
K1200 Line
Suit Frame
TKM,THKM
Voltage
600

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
TKM836T300 Specifications:
Part NumberTKM836T300
Manufacturers
General Electric
Sub-CategoryTrip Units And Programmers
FamilyK1200 Line
TypeTKM
Weight4 lbs
Suit FrameTKM,THKM
Voltage600
ProtectionThermal Magnetic
Poles3
FunctionsLI - Long-Time and Instantaneous
Amperage Min300
Amperage Max300
