TP2525TTR
TP2525TTR
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
TP2525TTR Specifications
View Full SpecificationsView Specifications

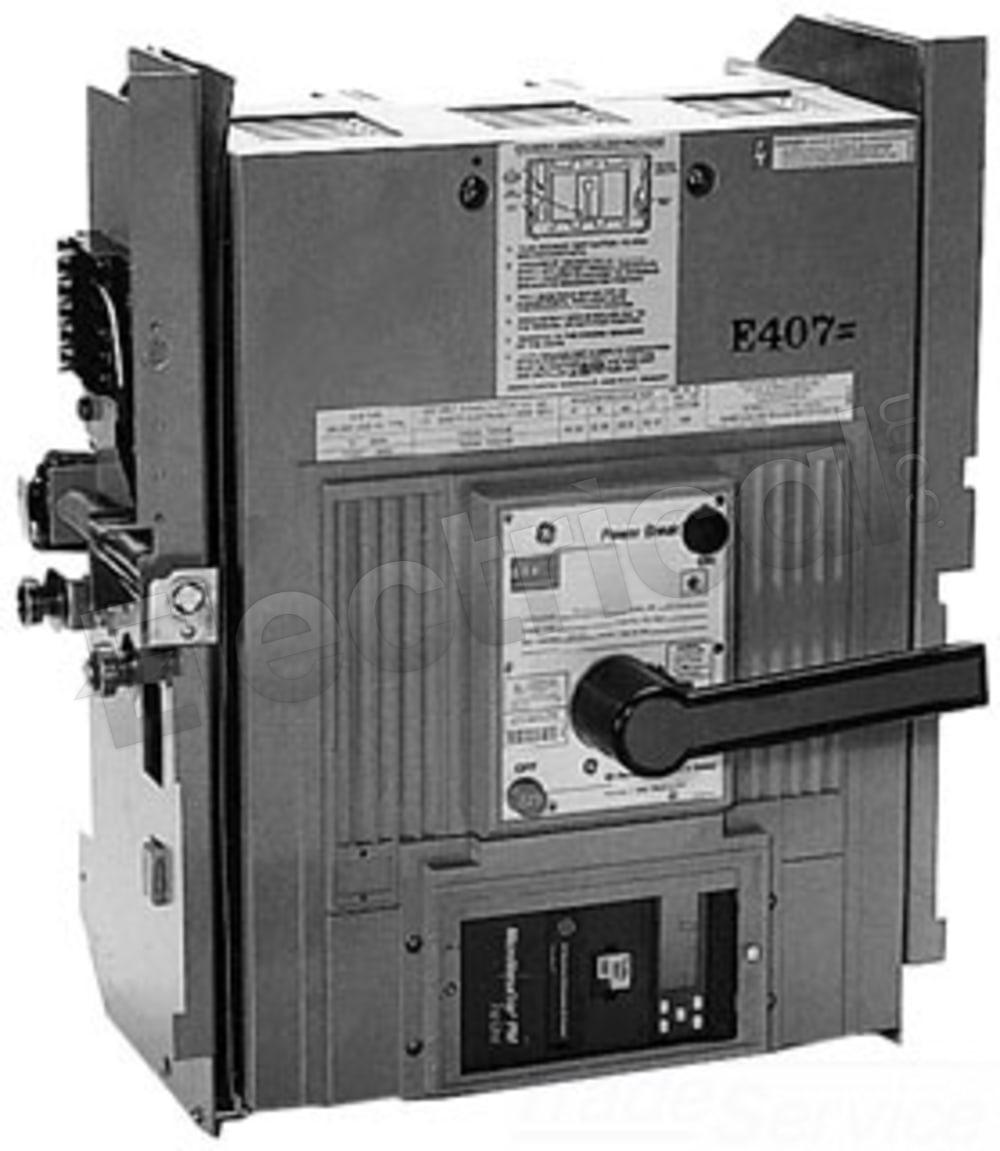

TP2525TTR, General Electric, Power Break I, type TP, 3P, 3PH, 600V, 2500A current sensor rating, 2500A frame rating, 100kA@480V, 100% rated, stationary, UL listed, standard interrupting capacity, suitable for reverse feed, Bolt-On, for use with MicroVersaTrip PM or Plus trip units, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State insulated case circuit breakers; these breakers are obsolete, however we do still stock them
| Manufacturer | General Electric | Subcategory | Insulated Case |
| Family | Power Break I | Amperage | 2500 |
| AIC Rating | 100kA@480V | Voltage | 600 |
| Manufacturer | General Electric | ||
| Subcategory | Insulated Case | ||
| Family | Power Break I | ||
| Amperage | 2500 | ||
| AIC Rating | 100kA@480V | ||
| Voltage | 600 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
