TP4VT25N

General Electric - Trip Units And Programmers

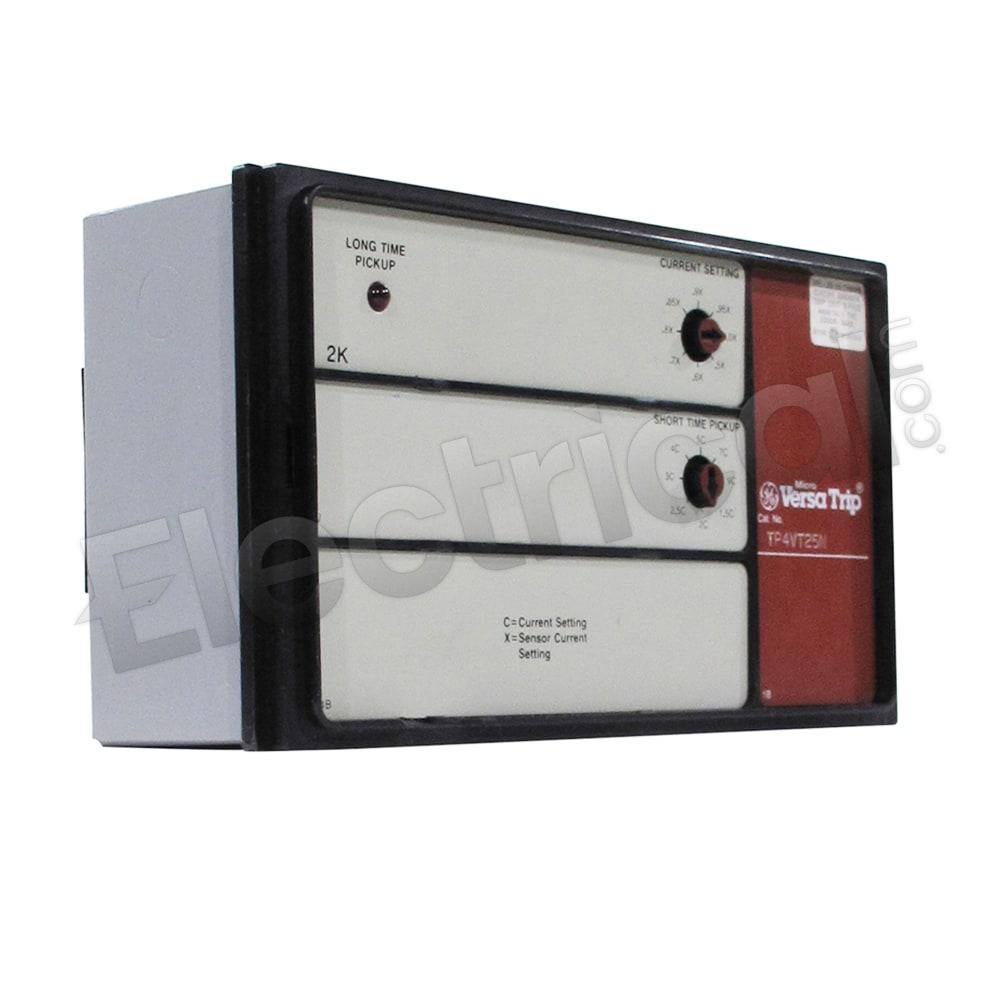

General Electric Trip Units And Programmers TP4VT25N

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

TP4VT25N Specifications

View Specifications

TP4VT25N, General Electric, MicroVersaTrip 4, type TP4VT, trip units and programmers, 400A-2500A current sensor rating, 600V, Solid State electronic, LSI - Long-Time, Short-Time and Instantaneous trip functions, suitable for use with Power Break I TPVF,TPVVF,THPVF,THPVVF 3000-4000A frame insulated case circuit breakers

Manufacturer
General Electric
Subcategory
Trip Units And Programmers
Family
MicroVersaTrip 4
Suit Frame
TPVF,TPVVF,THPVF,THPVVF
Voltage
600

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
TP4VT25N Specifications:
Part NumberTP4VT25N
Manufacturers
General Electric
Sub-CategoryTrip Units And Programmers
FamilyMicroVersaTrip 4
TypeTP4VT
Weight2 lbs
Suit FrameTPVF,TPVVF,THPVF,THPVVF
Voltage600
ProtectionSolid State
Poles3
FunctionsLSI - Long-Time, Short-Time and Instantaneous
Amperage Min400
Amperage Max2500
