TQ2115

General Electric - Molded Case

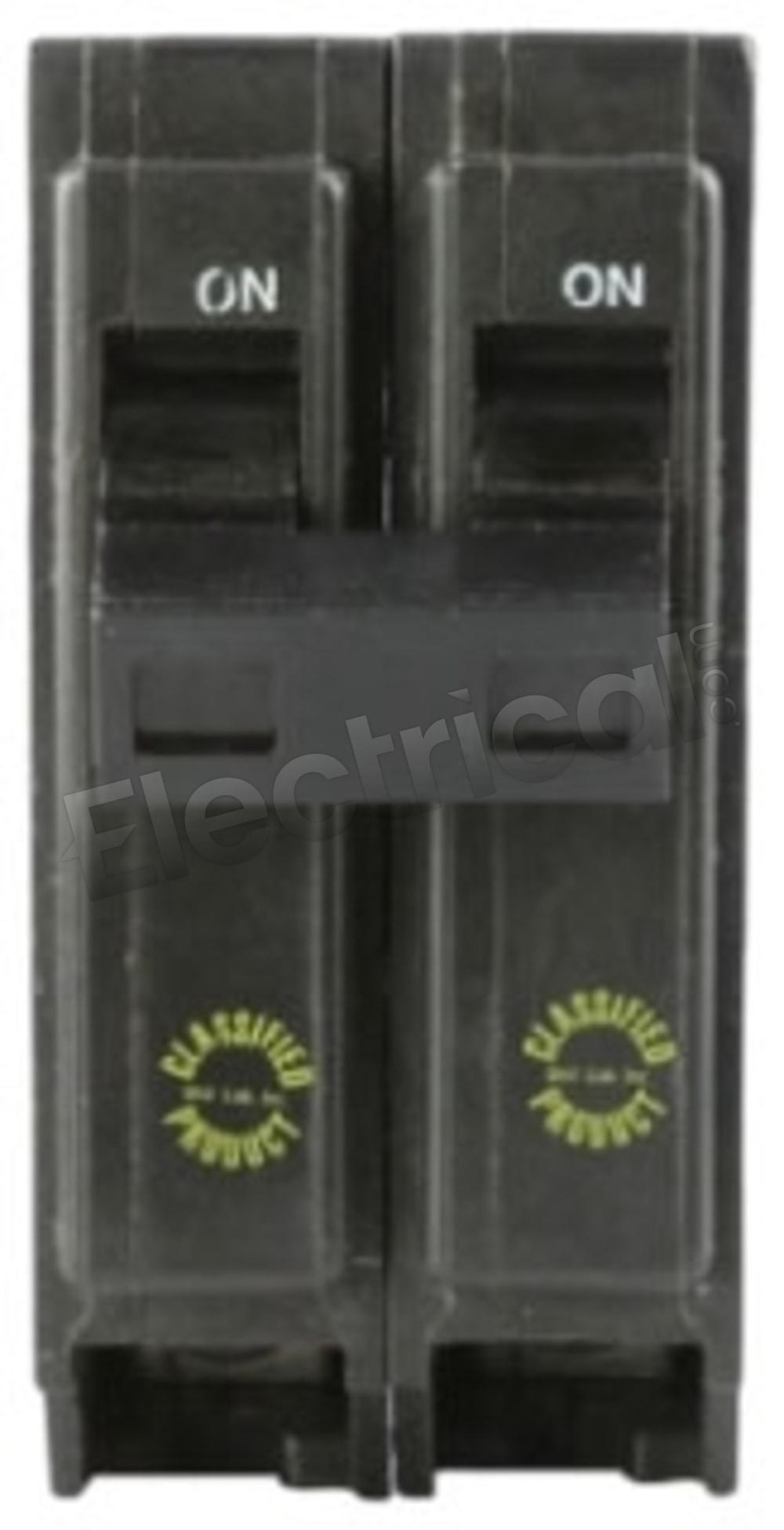

General Electric Molded Case TQ2115

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

TQ2115 Specifications

View Specifications

TQ2115, General Electric, type TQ, 2P, 1PH, 15A, 240V, 10kA@240V, Plug-In, complete with internal common trip, LI - Long-Time and Instantaneous trip functions and load side lug terminal, Thermal Magnetic, molded case circuit breaker; these breakers are not obsolete, however, we do still stock them

Manufacturer
General Electric
Subcategory
Molded Case
Family
TQ Series
Amperage
15
Voltage
240
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
TQ2115 Specifications:
Part NumberTQ2115
Manufacturers
General Electric
Sub-CategoryMolded Case
FamilyTQ Series
TypeTQ
Weight1 lbs
Amperage15
Voltage240
Poles2
AIC Rating10kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionPlug-In
Phase1
