TS20LSHGT2 General Electric Trip Units And Programmers Circuit Breaker

TS20LSHGT2

General Electric - Trip Units And Programmers

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

What's the difference?View Specifications

TS20LSHGT2 Specifications

View Full SpecificationsView Specifications

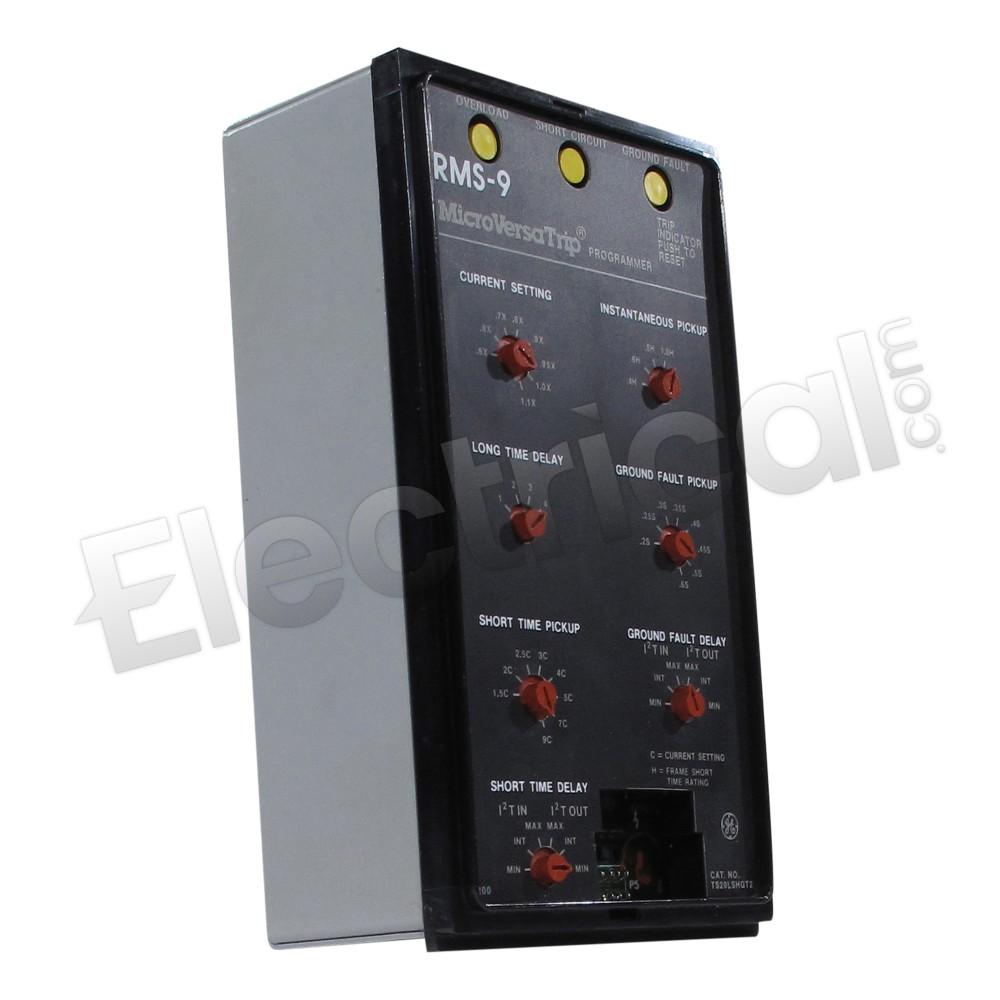

TS20LSHGT2, General Electric, MicroVersaTrip RMS-9, trip units and programmers, 100A current sensor rating, Solid State electronic, LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault trip functions, suitable for use with AK,AKR,AKRU,AKRT,AKS,TP,THP,TC,THC,TJH,TJL,TKH,TKL frame molded case, insulated case and low voltage power air circuit breakers

Manufacturer	General Electric	Subcategory	Trip Units And Programmers
Family	MicroVersaTrip RMS-9	Suit Frame	AK,AKR,AKRU,AKRT,AKS,TP,THP,TC,THC,TJH,TJL,TKH,TKL
Manufacturer	General Electric
Subcategory	Trip Units And Programmers
Family	MicroVersaTrip RMS-9
Suit Frame	AK,AKR,AKRU,AKRT,AKS,TP,THP,TC,THC,TJH,TJL,TKH,TKL

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

TS20LSHGT2 Specifications:

Part NumberTS20LSHGT2

Manufacturers

General Electric

Sub-CategoryTrip Units And Programmers

FamilyMicroVersaTrip RMS-9

TypeTS

Weight3 lbs

Suit FrameAK,AKR,AKRU,AKRT,AKS,TP,THP,TC,THC,TJH,TJL,TKH,TKL

ProtectionSolid State

FunctionsLSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault

Amperage Min100
