- Circuit Breaker /
- Molded Case /
- General Electric /
V07216
V07216
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
V07216 Specifications
View Full SpecificationsView Specifications

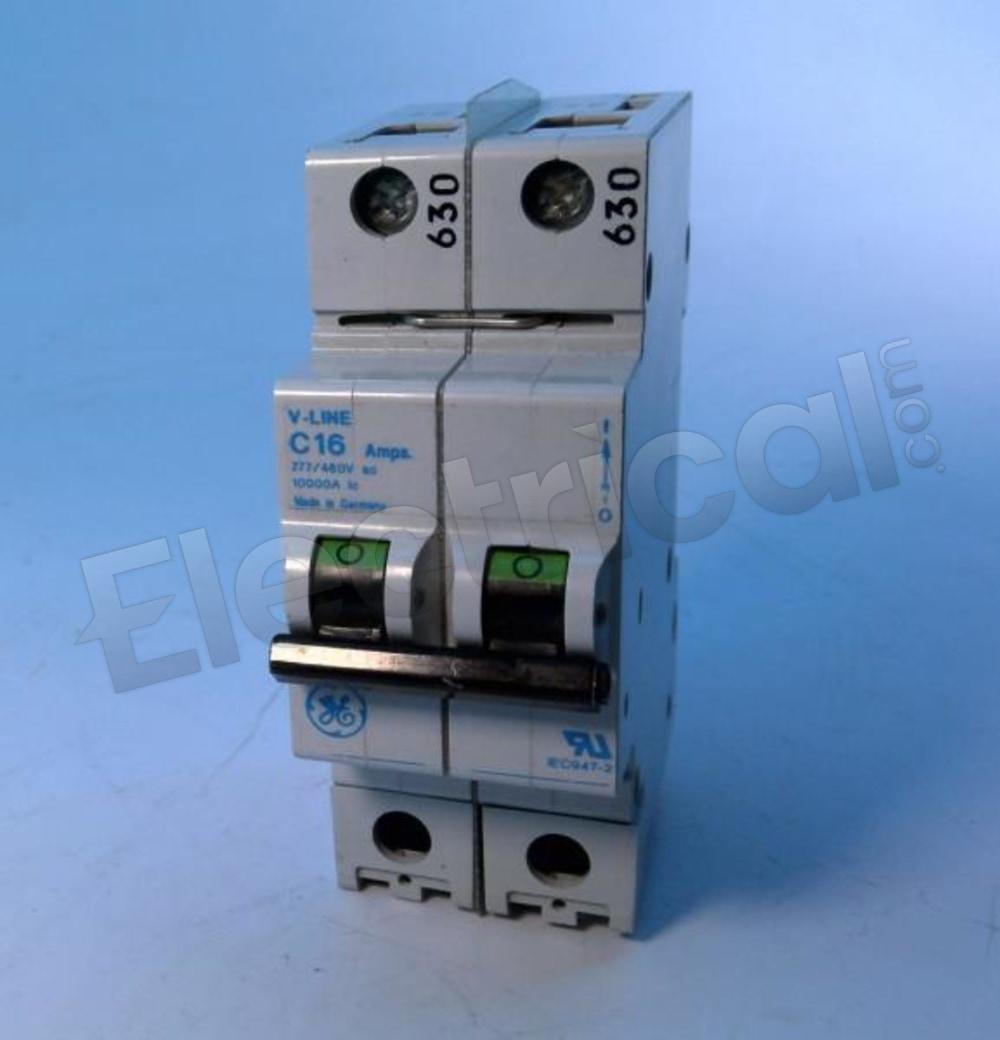

V07216, General Electric, V-Line, UL listed, C trip curve, 2P, 1PH, 16A, 480Y/277V AC, 10kA@277V, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, miniature molded case circuit breakers
| Manufacturer | General Electric | Subcategory | Molded Case |
| Family | V-Line | Amperage | 16 |
| Voltage | 277 | Poles | 2 |
| Manufacturer | General Electric | ||
| Subcategory | Molded Case | ||
| Family | V-Line | ||
| Amperage | 16 | ||
| Voltage | 277 | ||
| Poles | 2 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
V07216 Specifications:
Part NumberV07216
Manufacturers
Sub-CategoryMolded Case
FamilyV-Line
TypeV
Weight0.1984 lbs
Amperage16
Voltage277
Poles2
AIC Rating10kA@277V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Phase1
Additional Information
