E43A025

ITE - Molded Case

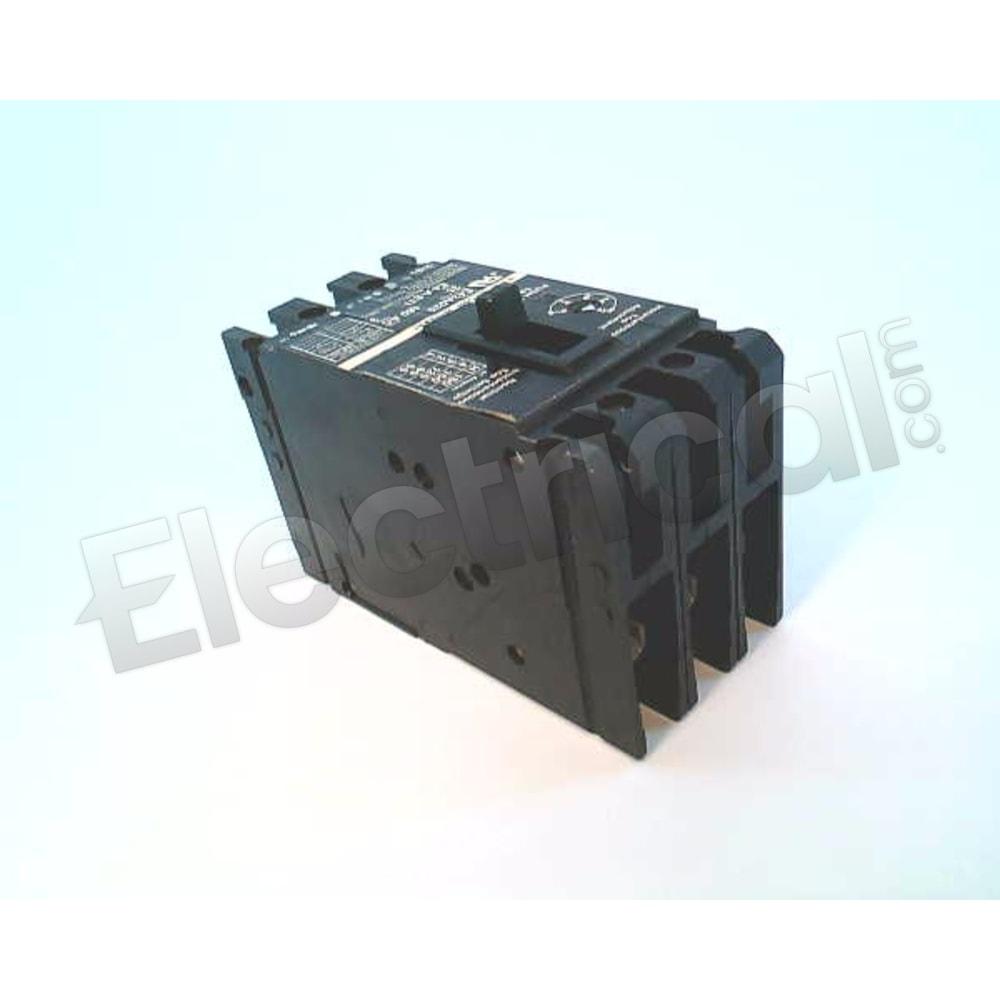

ITE Molded Case E43A025

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

E43A025 Specifications

View Specifications

E43A025, ITE, Siemens, E Series, type E, 3P, 3PH, 25A, 480V, 18kA@480V, standard interrupting capacity, 40?C, Bolt-On, complete with I - Instantaneous trip functions and load side lug terminals, Magnetic Only, molded case circuit breakers; these breakers are obsolete however we still stock them

Manufacturer
ITE
Subcategory
Molded Case
Family
E Series
Amperage
25
Voltage
480
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
E43A025 Specifications:
Part NumberE43A025
Manufacturers
ITE, Siemens
Sub-CategoryMolded Case
FamilyE Series
TypeE
Weight3 lbs
Amperage25
Voltage480
Poles3
AIC Rating18kA@480V
FunctionsI - Instantaneous
ProtectionMagnetic Only
ConnectionBolt-On
Phase3
