HE2M080

ITE - Molded Case

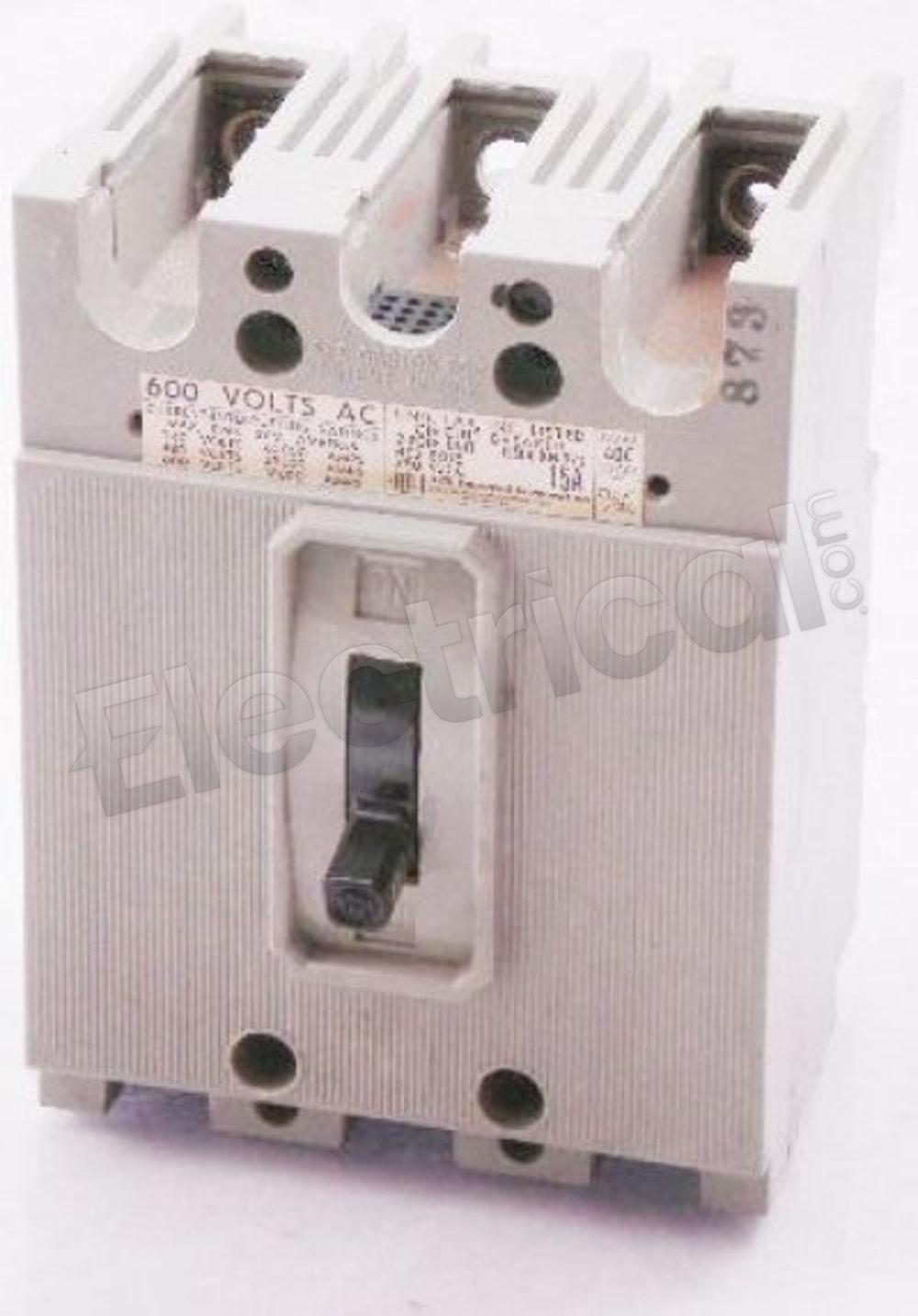

ITE Molded Case HE2M080

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HE2M080 Specifications

View Specifications

HE2M080, Siemens, ITE, HE Series, type HE, 2P, 1PH, 80A, 480V, 25kA@480V, high interrupting capacity, Bolt-On, marine duty rated, 50°C, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are now obsolete, however we do still stock them

Manufacturer
ITE
Subcategory
Molded Case
Family
HE Series
Amperage
80
Voltage
480
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HE2M080 Specifications:
Part NumberHE2M080
Manufacturers
Siemens, ITE
Sub-CategoryMolded Case
FamilyHE Series
TypeHE
Weight3 lbs
Amperage80
Voltage480
Poles2
AIC Rating25kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase1
