    4. QP2B030

QP2B030

ITE - Molded Case

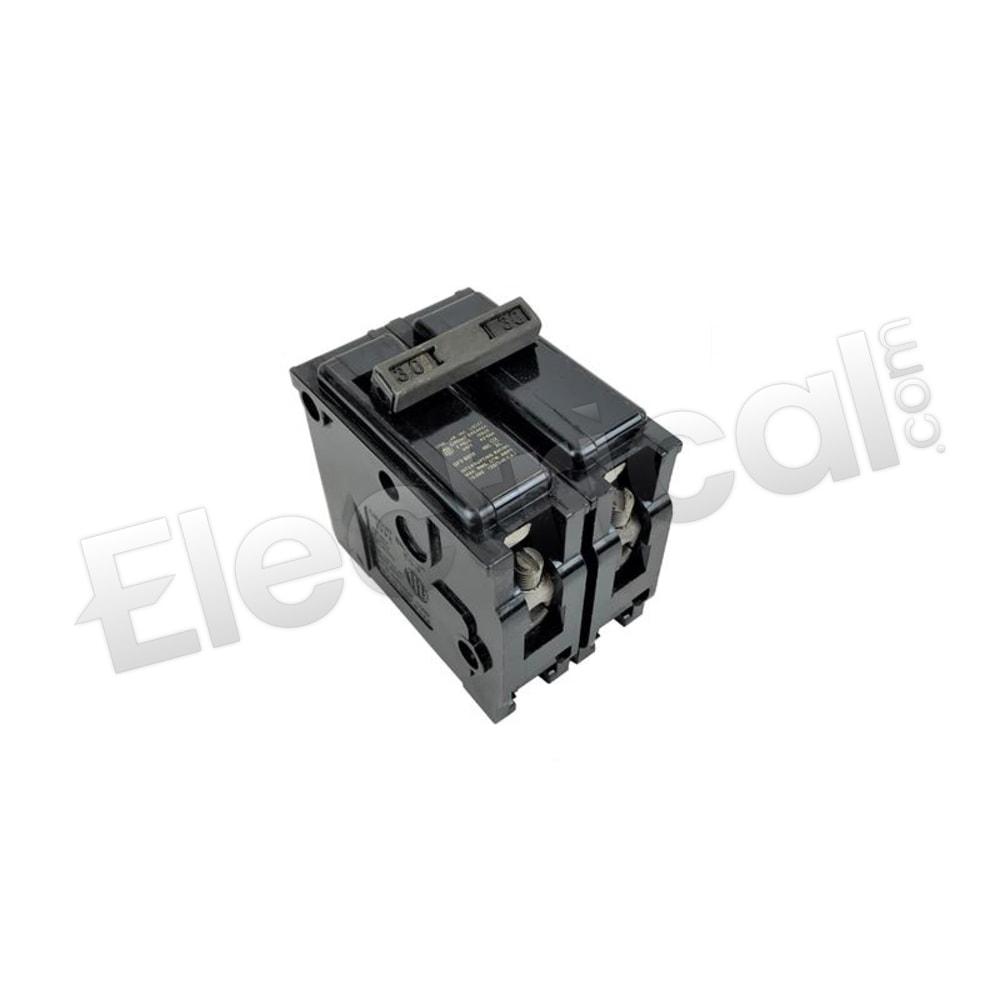

ITE Molded Case QP2B030

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

QP2B030 Specifications

View Specifications

QP2B030, ITE, EQ Series, type EQ-P, dual 2P main, 1PH, 30A, 120/240V, 10kA@240V, standard interrupting capacity, 40°C, Plug-In, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case case circuit breakers; these breakers are obsolete, however we still stock them

Manufacturer
ITE
Subcategory
Molded Case
Family
EQ Series
Amperage
30
Voltage
240
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
QP2B030 Specifications:
Part NumberQP2B030
Manufacturers
ITE
Sub-CategoryMolded Case
Other NamesQP2-B030
FamilyEQ Series
TypeEQ-P
Weight0.59 lbs
Amperage30
Voltage240
Poles2
AIC Rating10kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionPlug-In
Phase1
