31102

Schneider Electric - Molded Case

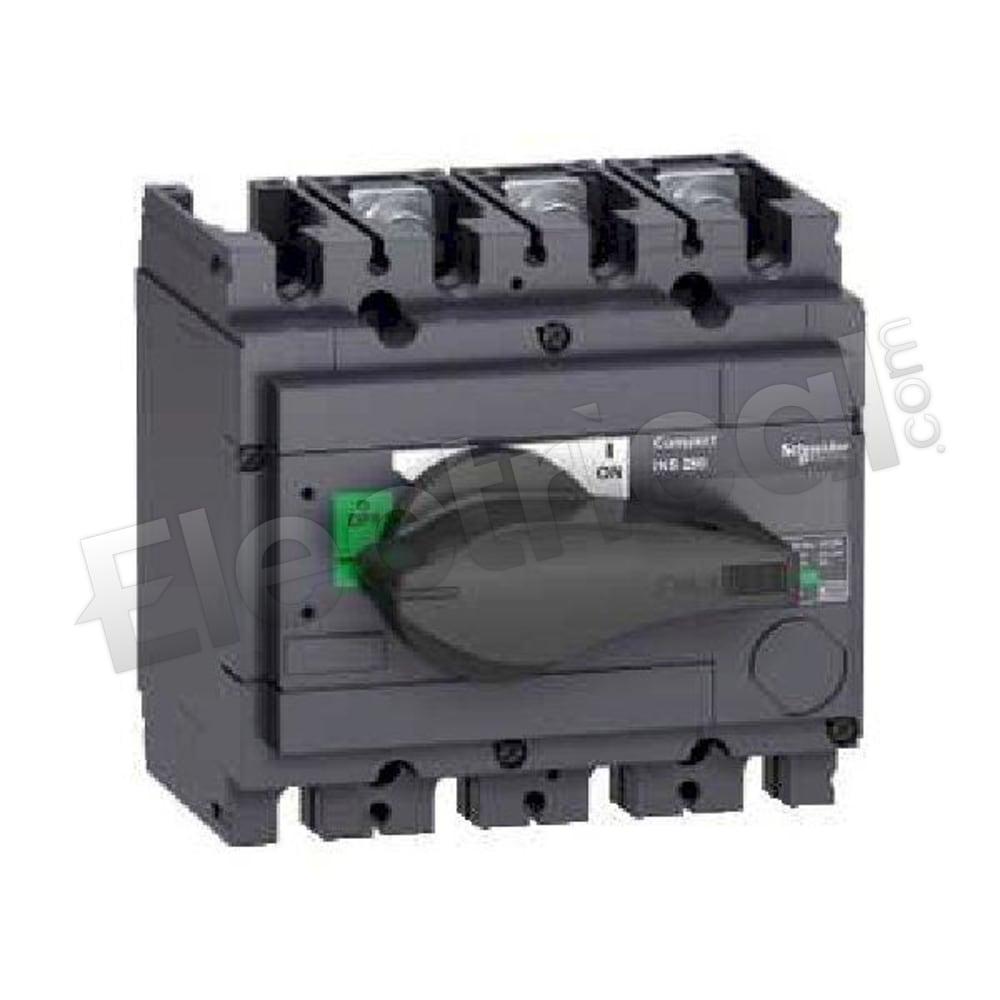

Schneider Electric Molded Case 31102

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

31102 Specifications

View Specifications

31102, Square D, Schneider Electric, Interpact, INS250, standard version with black handle, 3P with neutral, 3PH, 200A, 750V, 50/60Hz, IEC rated, 20kA@750V, standard interrupting capacity, Feed-Thru, NA - No Overcurrent Protection, line & load side lug terminals, Non-Automatic, molded case switch

Manufacturer
Schneider Electric
Subcategory
Molded Case
Family
Interpact
Amperage
200
Voltage
750
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
31102 Specifications:
Part Number31102
Manufacturers
Square D, Schneider Electric
Sub-CategoryMolded Case
FamilyInterpact
TypeINS
Weight5 lbs
Amperage200
Voltage750
Poles3
AIC Rating20kA@750V
FunctionsNA - No Overcurrent Protection
ProtectionNon-Automatic
ConnectionFeed-Thru
Phase3
