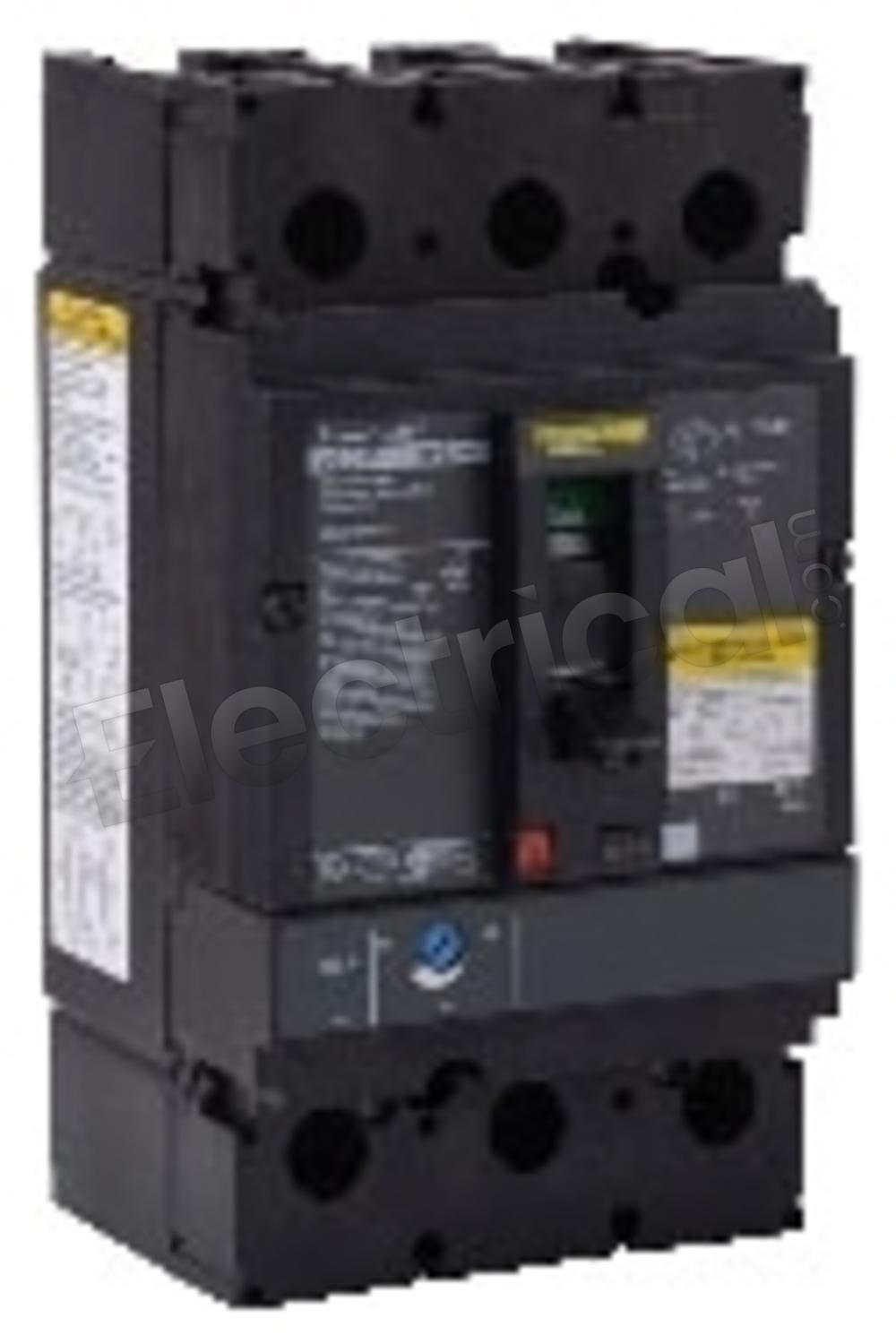

JGL37125D81
JGL37125D81
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
JGL37125D81 Specifications
View Full SpecificationsView Specifications
JGL37125D81, Schneider Electric, Square D, PowerPact, type JGL, 3P, 3PH, 125A, 600Vdc, DC rated, 20kA@500VDC, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, magnetic trip range 400-600A, Thermal Magnetic, DC molded case circuit breakers
| Manufacturer | Schneider Electric | Subcategory | Molded Case |
| Family | PowerPact | Amperage | 125 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Schneider Electric | ||
| Subcategory | Molded Case | ||
| Family | PowerPact | ||
| Amperage | 125 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
JGL37125D81 Specifications:
Part NumberJGL37125D81
Manufacturers
Sub-CategoryMolded Case
FamilyPowerPact
TypeJGL
UPC785901631798
Weight2.27 lbs
Amperage125
Voltage600
Poles3
AIC Rating20kA@500VDC
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeJ Frame
Phase3
