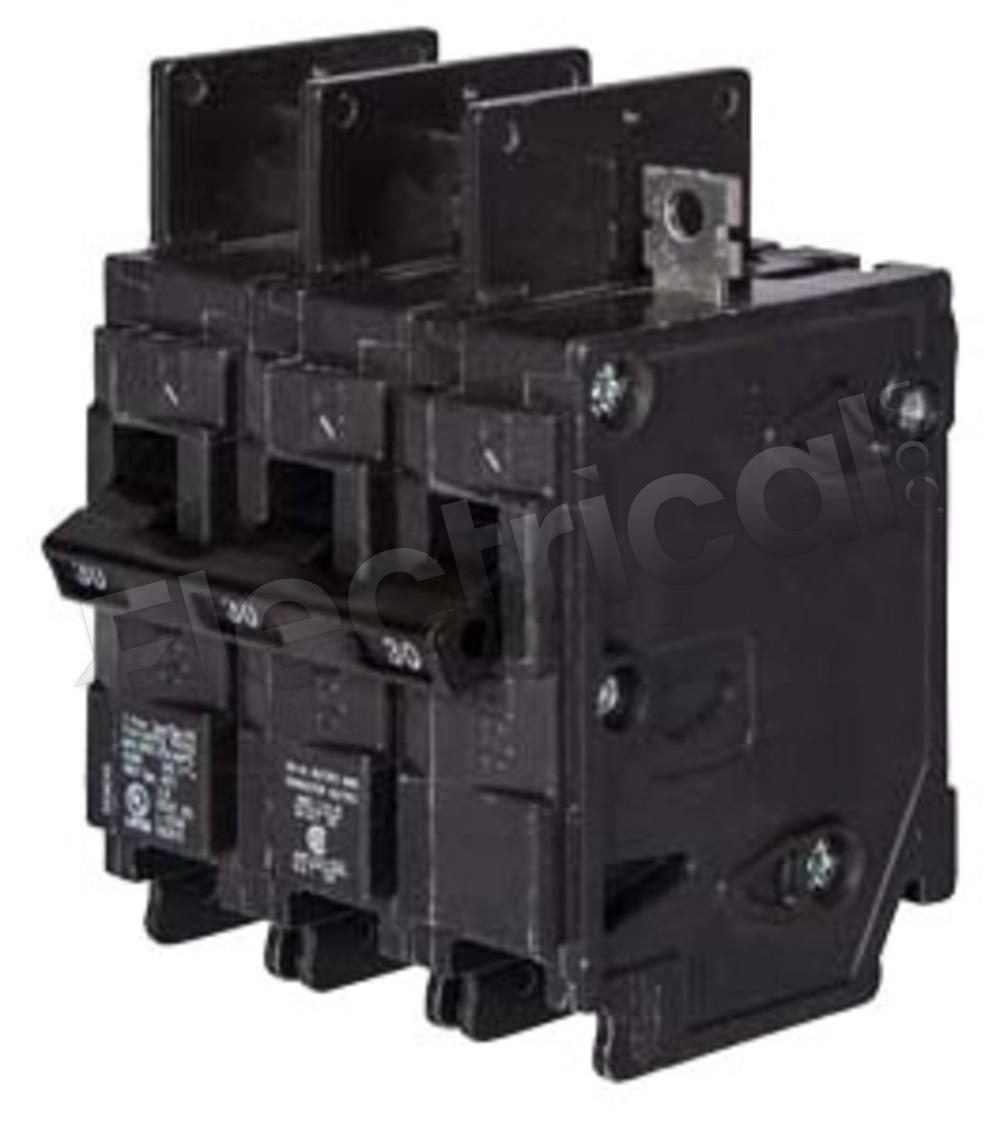

BQ3M030
BQ3M030
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
BQ3M030 Specifications
View Full SpecificationsView Specifications
BQ3M030, Siemens, BQ Series, type BQ, for marine applications, 3PH, 3P, 240V, 30A, 10kA@240V, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | BQ Series | Amperage | 30 |
| Voltage | 240 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | BQ Series | ||
| Amperage | 30 | ||
| Voltage | 240 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
BQ3M030 Specifications:
Part NumberBQ3M030
Manufacturers
Sub-CategoryMolded Case
FamilyBQ Series
TypeBQ
Weight1 lbs
Amperage30
Voltage240
Poles3
AIC Rating10kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
