CQD380

Siemens - Molded Case

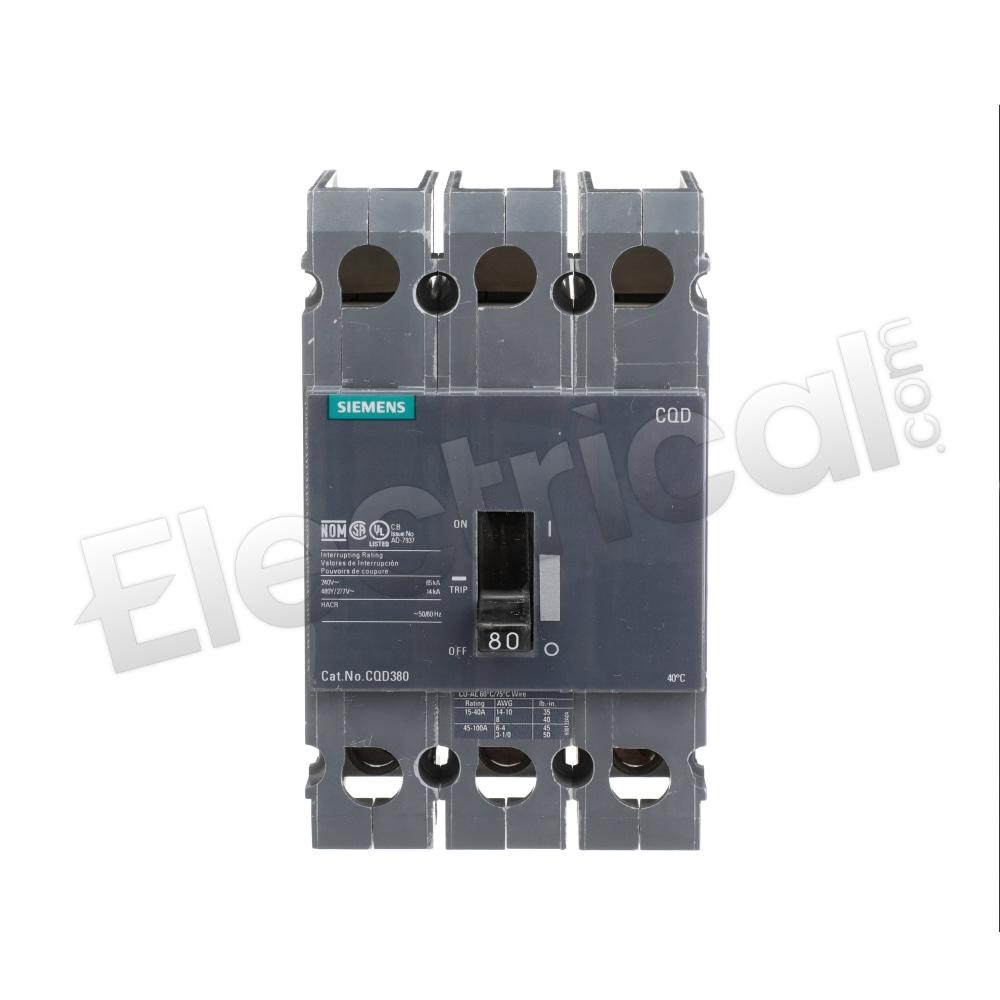

Siemens Molded Case CQD380

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

CQD380 Specifications

View Specifications

CQD380, Siemens, CQD Series, type CQD, 3P, 3PH, 80A, 277/480V, 14kA@480V, standard interrupting capacity, 40ºC, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
CQD Series
Amperage
80
Voltage
480
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
CQD380 Specifications:
Part NumberCQD380
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilyCQD Series
TypeCQD
UPC783643277830
Weight1 lbs
Amperage80
Voltage480
Poles3
AIC Rating14kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Phase3
