D230EE

Siemens - Molded Case

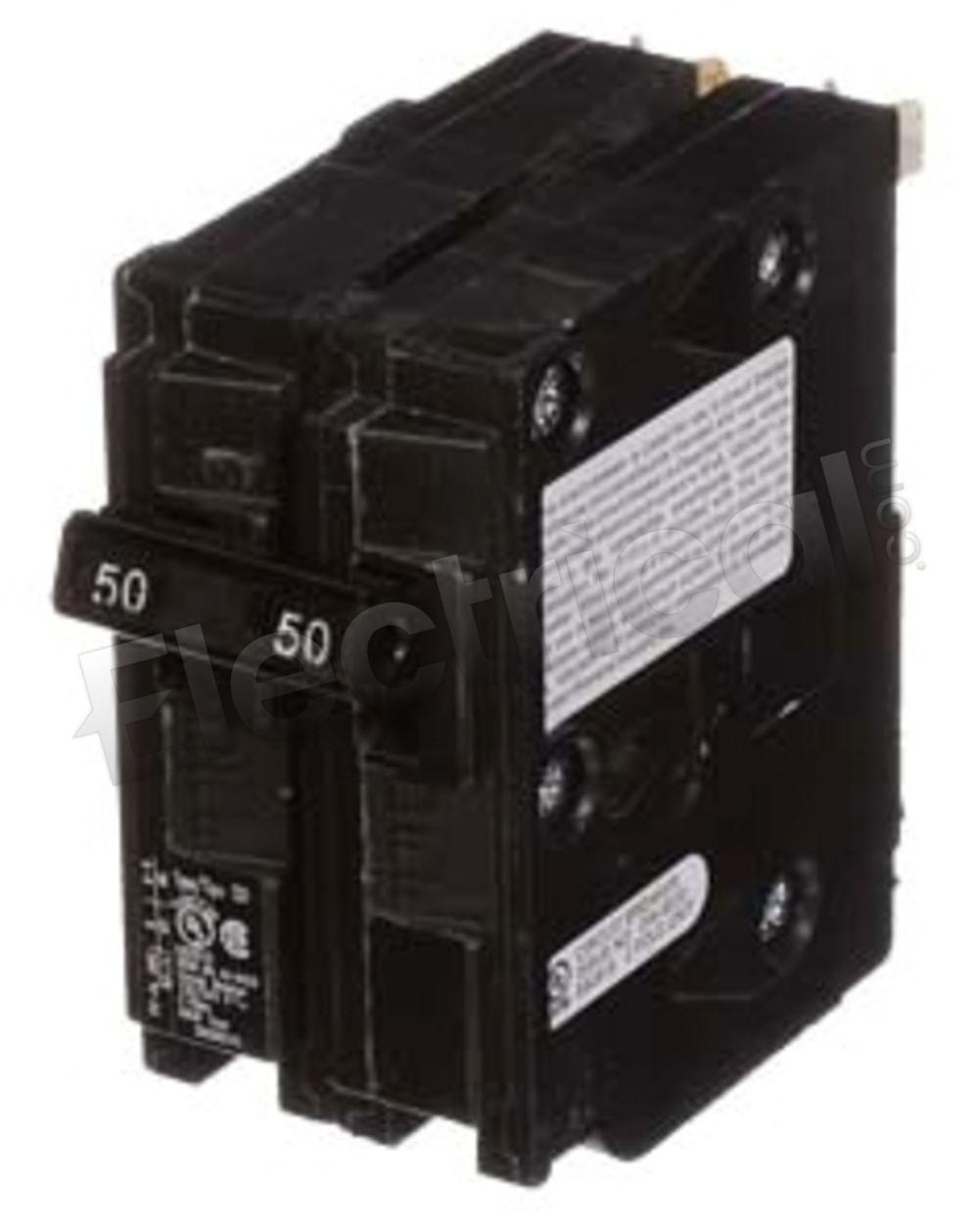

Siemens Molded Case D230EE

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

D230EE Specifications

View Specifications

D230EE, Siemens, type QD, 2P, 120/240V, 30A, 10kA, Plug-In, molded case circuit breakers are for replacement QO breakers for use in Square D's QO load centers, non UL certified

Manufacturer
Siemens
Subcategory
Molded Case
Family
QD Series
Amperage
30
Voltage
240
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
D230EE Specifications:
Part NumberD230EE
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilyQD Series
TypeQD
UPC078364333488
Weight1 lbs
Amperage30
Voltage240
Poles2
AIC Rating10kA
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionPlug-In
Phase1
