E3RED42B100

Siemens - Molded Case

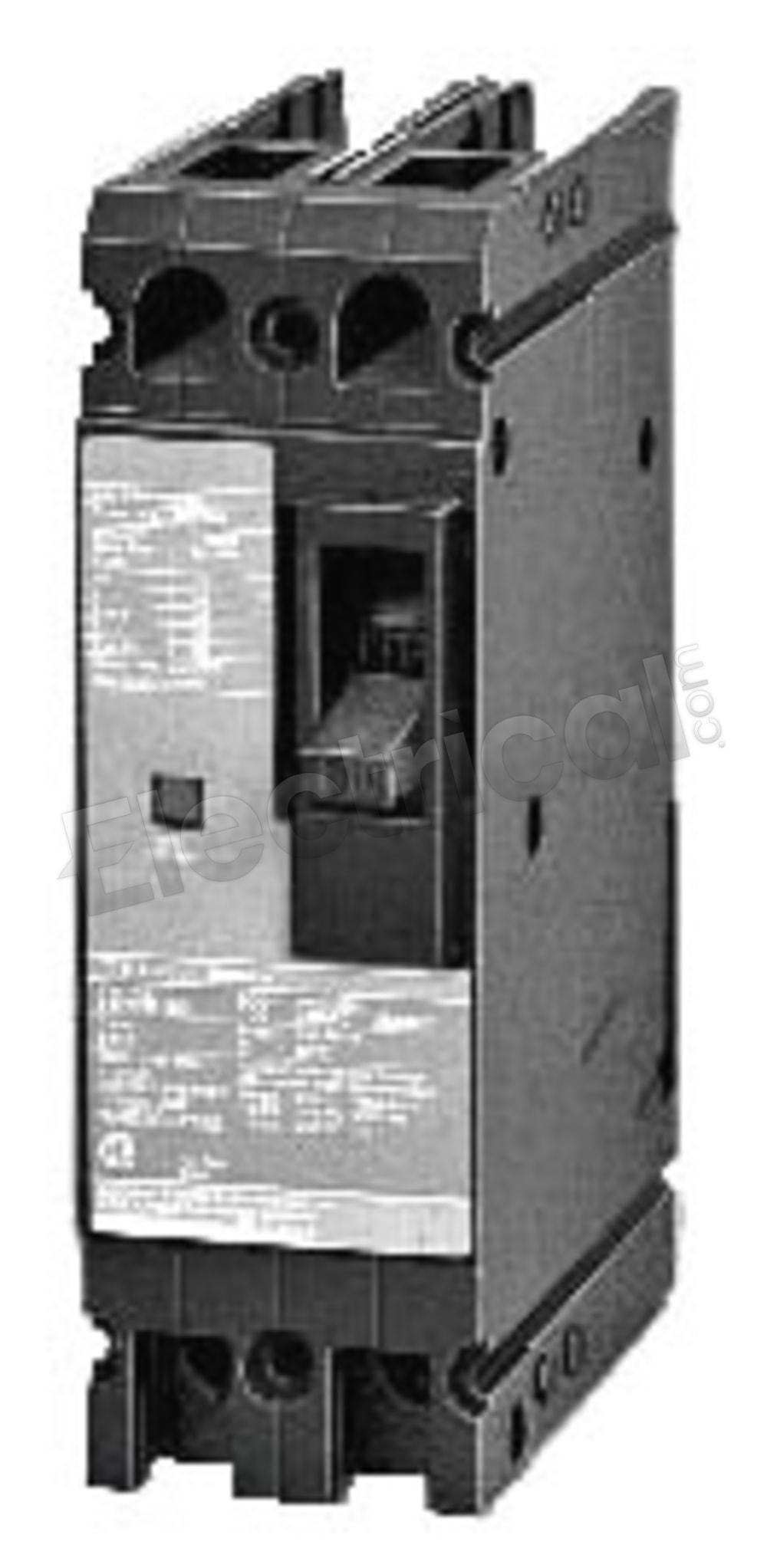

Siemens Molded Case E3RED42B100

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

E3RED42B100 Specifications

View Specifications

E3RED42B100, Siemens, SENTRON, type ED, 2P, 1PH, 100A, 480V, 18kA@480V, standard interrupting capacity, 40ºC, Feed-Thru, complete with Type 3R enclosure, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
SENTRON
Amperage
100
Voltage
480
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
E3RED42B100 Specifications:
Part NumberE3RED42B100
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilySENTRON
TypeED
Weight13 lbs
Amperage100
Voltage480
Poles2
AIC Rating18kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeED Frame
Phase1
