E4XED23B070

Siemens - Molded Case

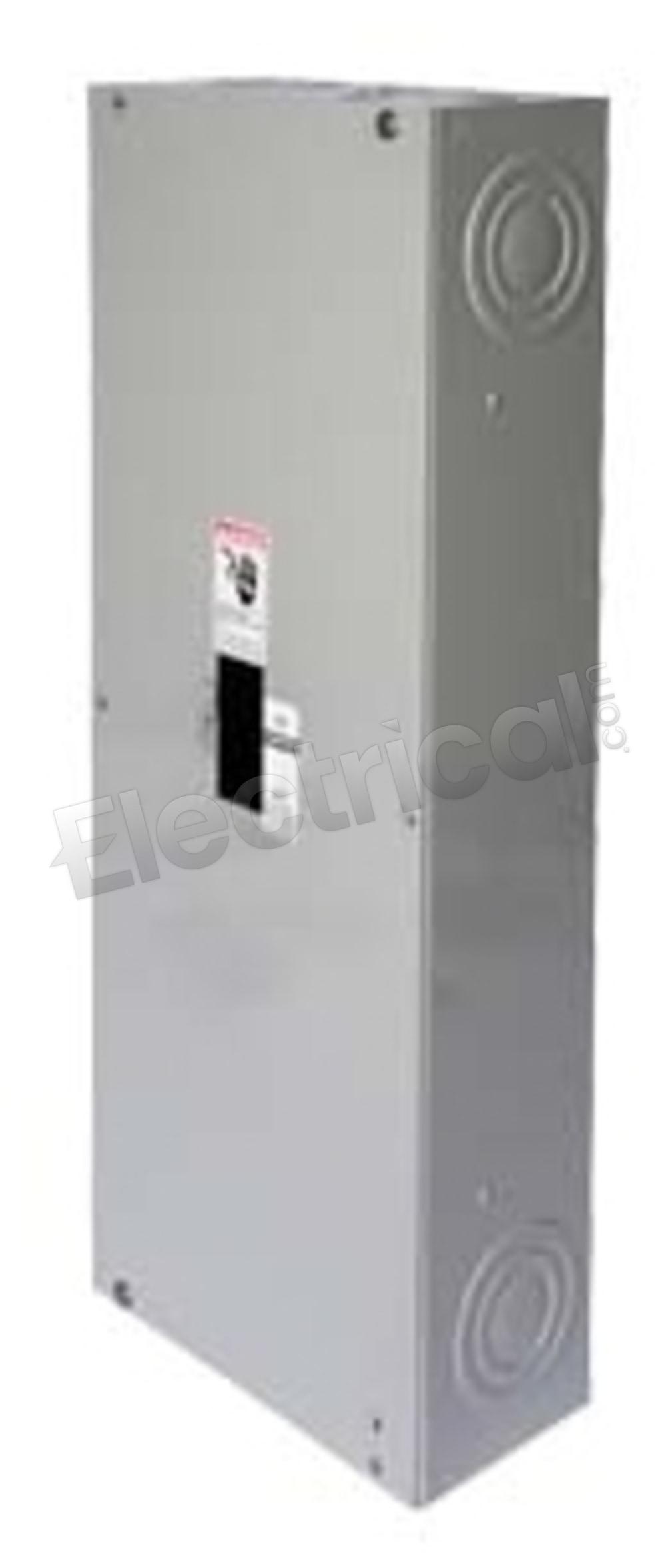

Siemens Molded Case E4XED23B070

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

E4XED23B070 Specifications

View Specifications

E4XED23B070, Siemens, SENTRON, type ED, 3P, 3PH, 70A, 240V, 10kA@240V, standard interrupting capacity, 40ºC, Feed-Thru, complete with Type 4X stainless steel enclosure, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
SENTRON
Amperage
70
Voltage
240
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
E4XED23B070 Specifications:
Part NumberE4XED23B070
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilySENTRON
TypeED
Weight15 lbs
Amperage70
Voltage240
Poles3
AIC Rating10kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeED Frame
Phase3
