FM6F250
FM6F250
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
FM6F250 Specifications
View Full SpecificationsView Specifications

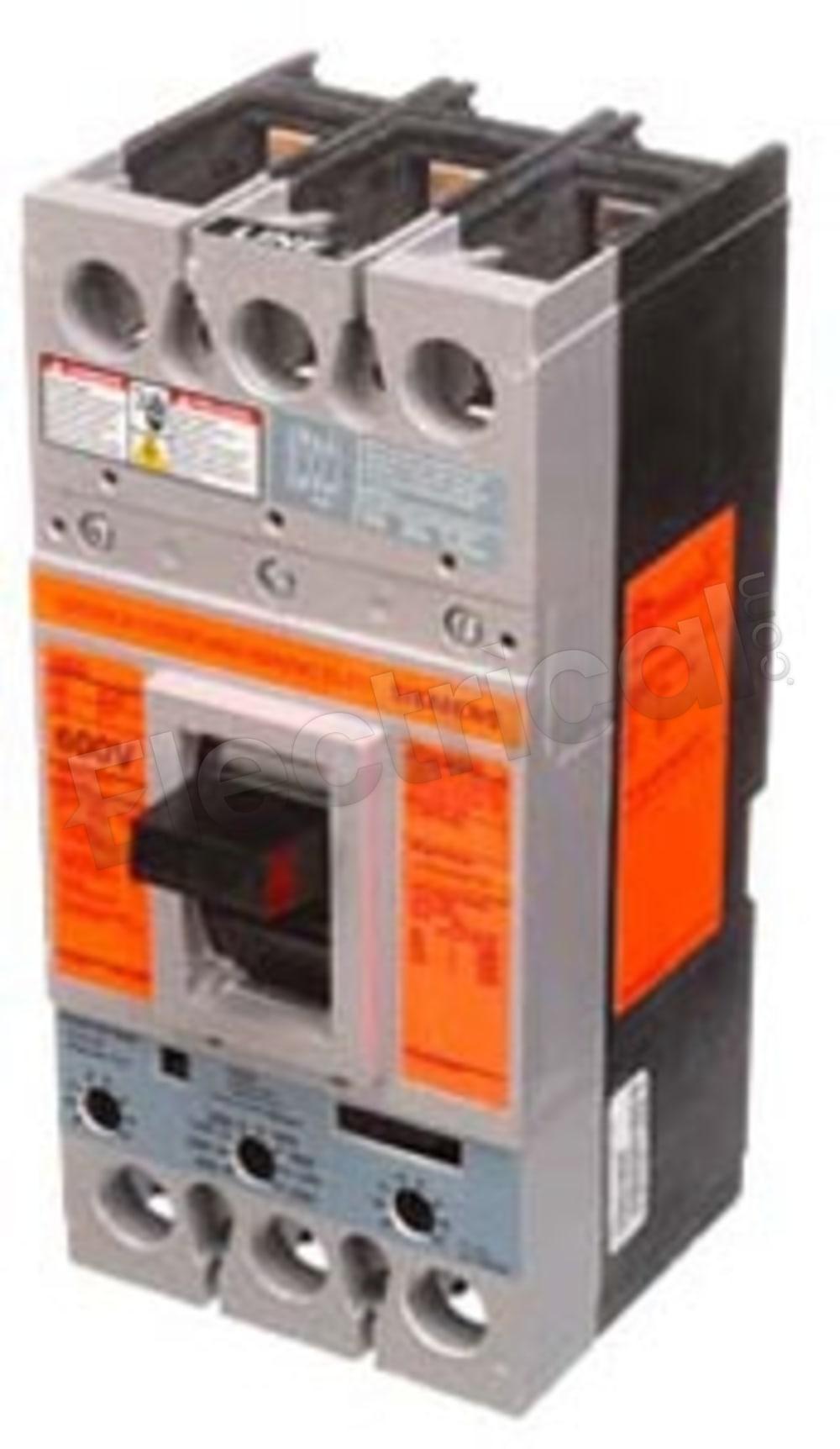

FM6F250, FRAME ONLY, Siemens, Mining Service, type FM6F, 3P, 3PH, 250A, 600V, mining duty rated, 18kA@600V, standard interrupting capacity, Bolt-On, Magnetic Only, Mining Service molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | Mining Service | Amperage | 250 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | Mining Service | ||
| Amperage | 250 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
FM6F250 Specifications:
Part NumberFM6F250
Manufacturers
Sub-CategoryMolded Case
FamilyMining Service
TypeFM6F
Weight10 lbs
Amperage250
Voltage600
Poles3
AIC Rating18kA@600V
FunctionsI - Instantaneous
ProtectionMagnetic Only
ConnectionBolt-On
Phase3
