FXD62A150

Siemens - Molded Case

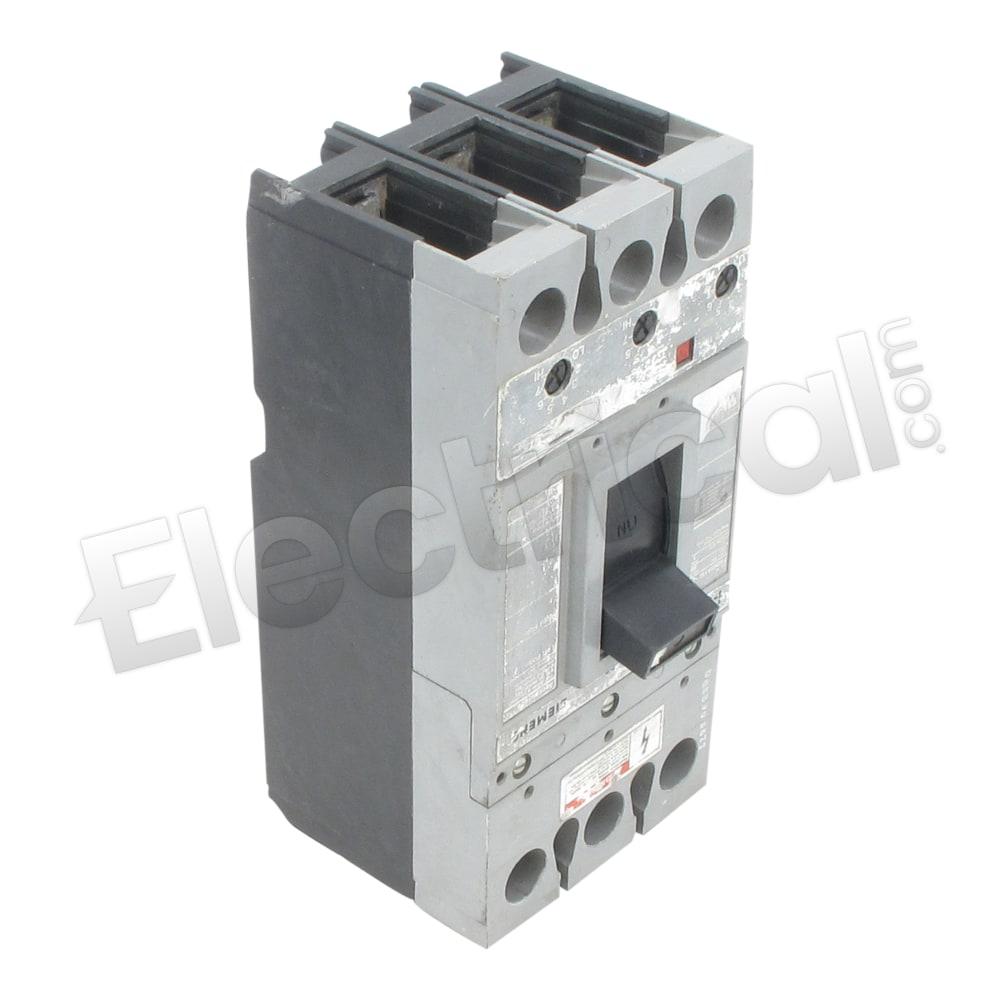

Siemens Molded Case FXD62A150

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FXD62A150 Specifications

View Specifications

FXD62A150, Siemens, Sentron Series, type FXD, 2P, 1PH, 150A, 600V, 35kA@480V, standard interrupting capacity, Bolt-On, complete with I - Instantaneous protection only, standard instantaneous range, lugs not included, MCP, motor circuit protectors, magnetic range 800-1500A, Magnetic Only, molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
Sentron Series
Amperage
150
Voltage
600
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FXD62A150 Specifications:
Part NumberFXD62A150
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilySentron Series
TypeFXD
Weight14 lbs
Amperage150
Voltage600
Poles2
AIC Rating35kA@480V
FunctionsI - Instantaneous
ProtectionMagnetic Only
ConnectionBolt-On
Frame TypeFD Frame
Phase1
