HFM3M250L

Siemens - Molded Case

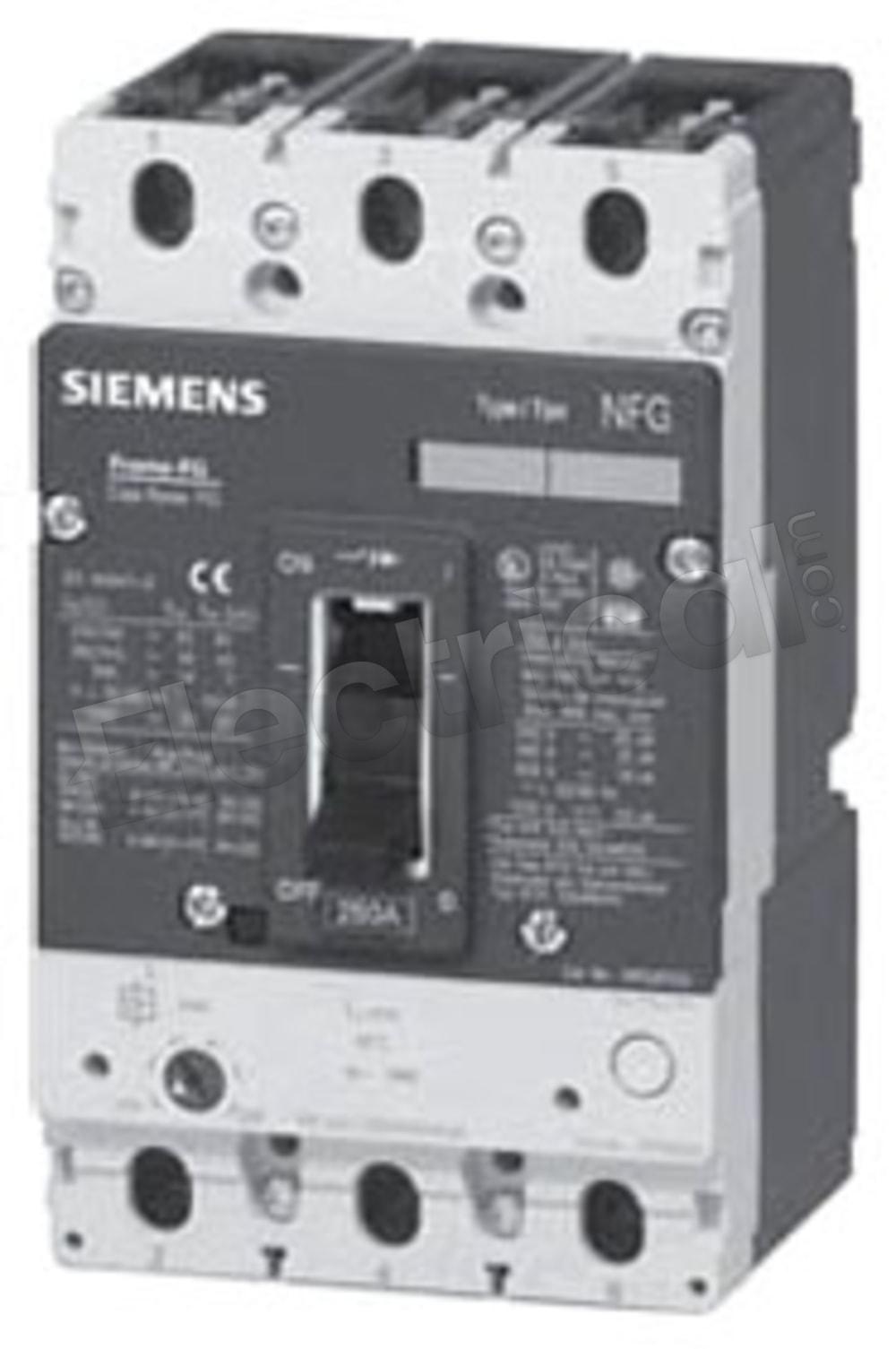

Siemens Molded Case HFM3M250L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HFM3M250L Specifications

View Specifications

HFM3M250L, Siemens, VL Series, type HFM, FG frame, 3P, 3PH, 250A, 600V, 65kA@480V, standard interrupting capacity, Feed-Thru, complete with trip, I - Instantaneous protection only, and line & load side lug terminals, mid-mag, MCP, motor circuit protectors, magnetic range 1000-2000A, Magnetic Only, molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
VL Series
Amperage
250
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HFM3M250L Specifications:
Part NumberHFM3M250L
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilyVL Series
TypeHFM
Weight17 lbs
Amperage250
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsI - Instantaneous
ProtectionMagnetic Only
ConnectionFeed-Thru
Frame TypeFG Frame
Phase3
