HFX3P250

Siemens - Molded Case

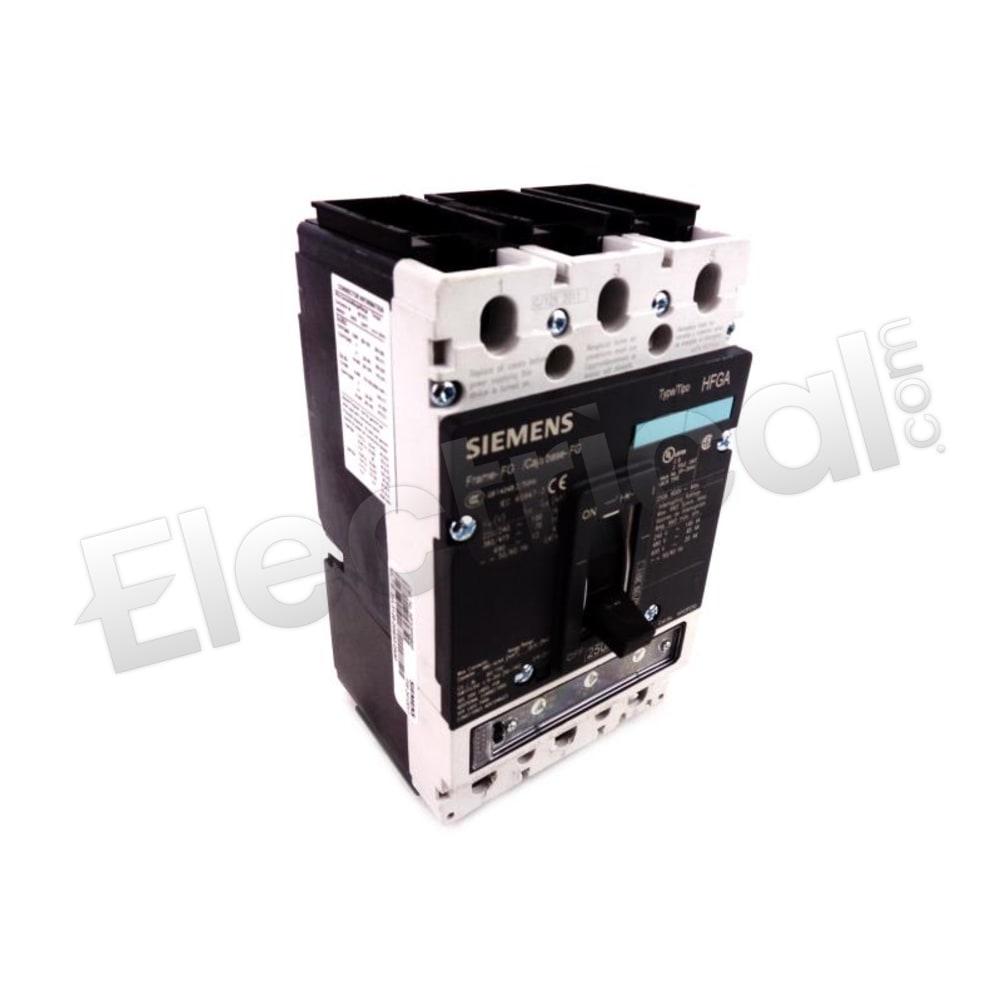

Siemens Molded Case HFX3P250

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HFX3P250 Specifications

View Specifications

HFX3P250, Siemens, VL Series, Type HFX, FG Frame, 3P, 3PH, 250A, 600V, 65kA@480V, high interrupting capacity, Bolt-On, complete with non-interchangeable LSI - Long-Time, Short-Time and Instantaneous trip functions, lugs not included, suitable for reverse feed applications, Digital Solid State Electronic molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
VL Series
Amperage
250
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HFX3P250 Specifications:
Part NumberHFX3P250
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilyVL Series
TypeHFX
Weight6 lbs
Amperage250
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsLSI - Long-Time, Short-Time and Instantaneous
ProtectionSolid State
ConnectionBolt-On
Frame TypeFG Frame
Phase3
