HJY3X400B

Siemens - Molded Case

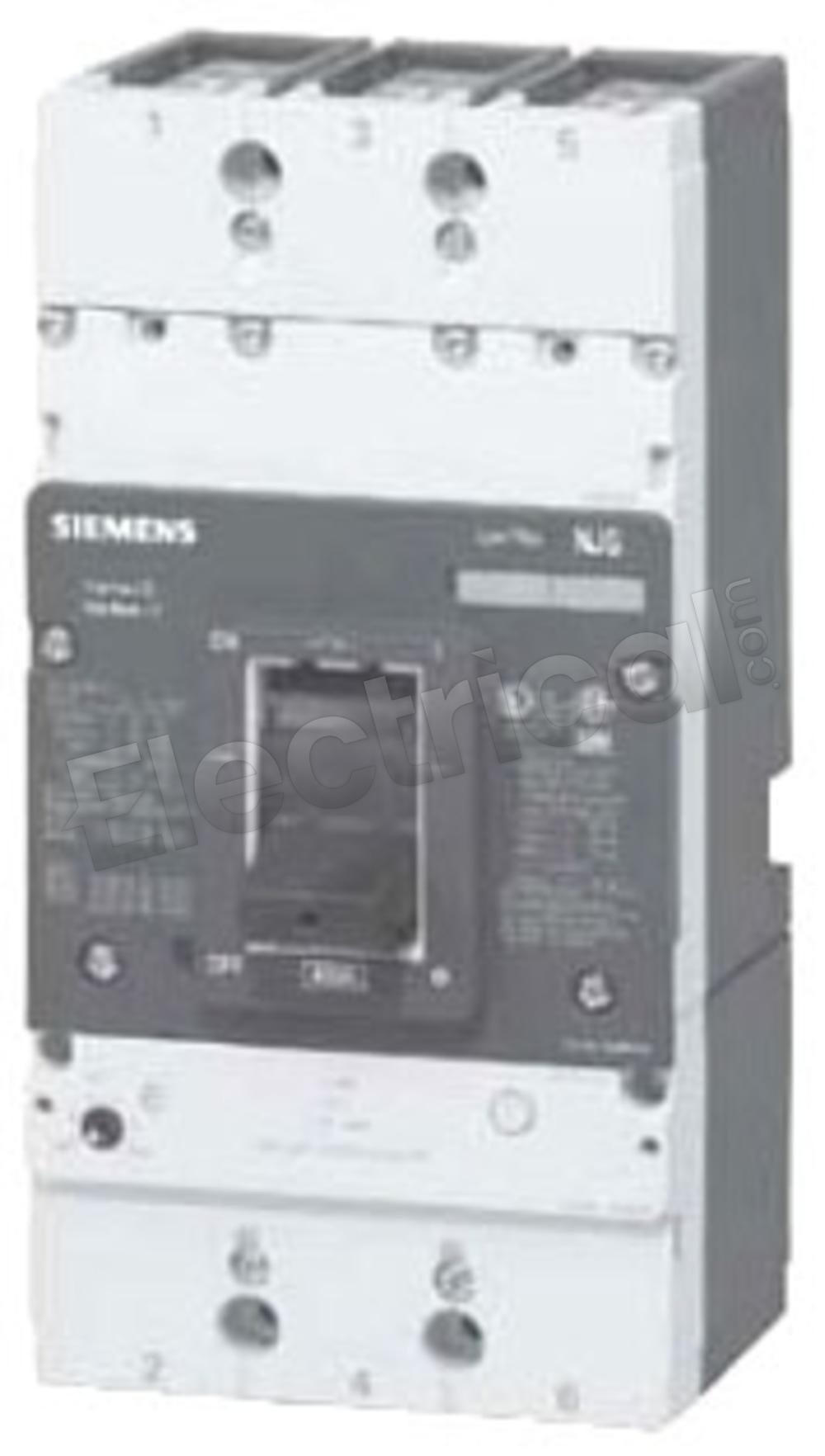

Siemens Molded Case HJY3X400B

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HJY3X400B Specifications

View Specifications

HJY3X400B, Siemens, VL Series, type HJY, JG Frame, 3P, 3PH, 400A, 600V, 65kA@480V, high interrupting capacity, Bolt-On, 100% rated, complete with non-interchangeable trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions and load side lug terminals, Digital Solid State Electronic molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
VL Series
Amperage
400
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HJY3X400B Specifications:
Part NumberHJY3X400B
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilyVL Series
TypeHJY
Weight45 lbs
Amperage400
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsLIG - Long-Time, Instantaneous and Ground Fault
ProtectionSolid State
ConnectionBolt-On
Frame TypeJG Frame
Phase3
