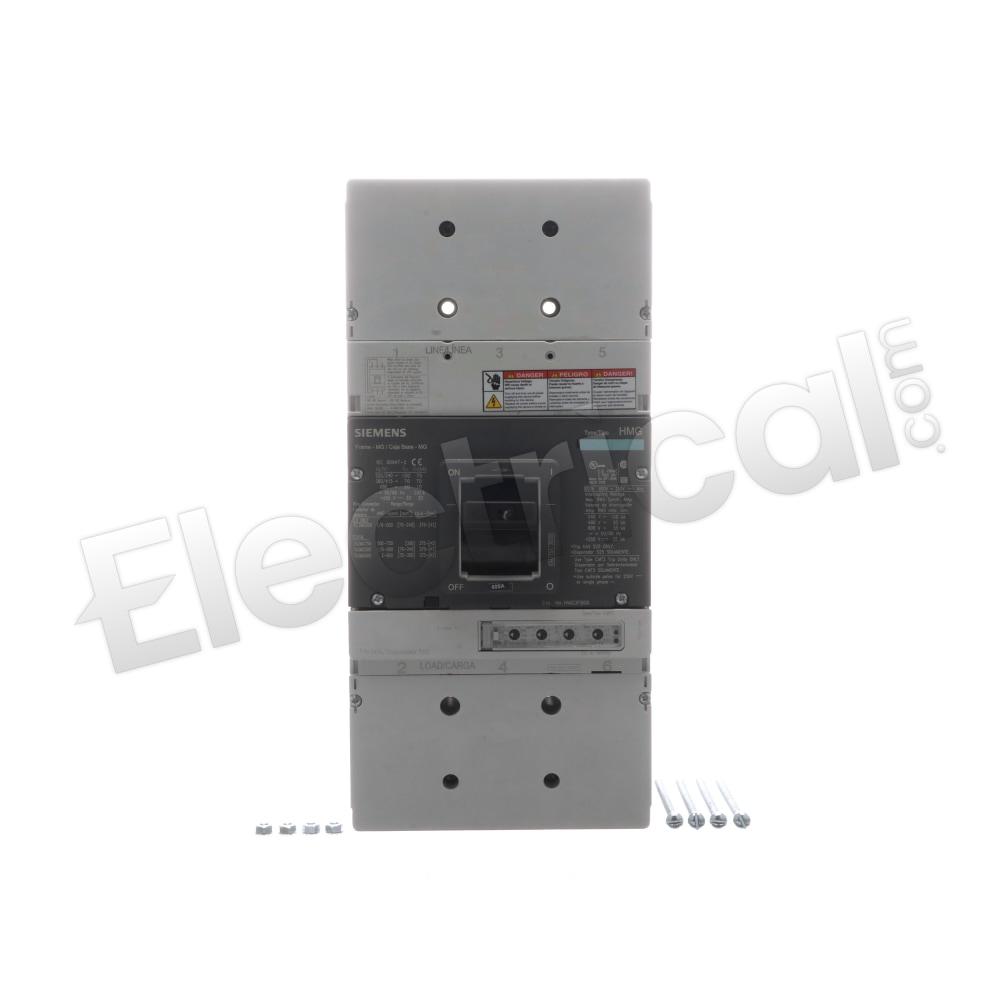

HMG3T800L
HMG3T800L
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
HMG3T800L Specifications
View Full SpecificationsView Specifications
HMG3T800L, Siemens, VL Series, type HMG, 3P, 3PH, 800A, 600V, 65kA@480V, high interrupting capacity, Feed-Thru, interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, line & load side lug terminals, Solid State electronic, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 800 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 800 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
HMG3T800L Specifications:
Part NumberHMG3T800L
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeHMG
Weight44 lbs
Amperage800
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsLSI - Long-Time, Short-Time and Instantaneous
ProtectionSolid State
ConnectionFeed-Thru
Frame TypeMG Frame
Phase3
