HMG3V600L Specifications
View Full SpecificationsView Specifications

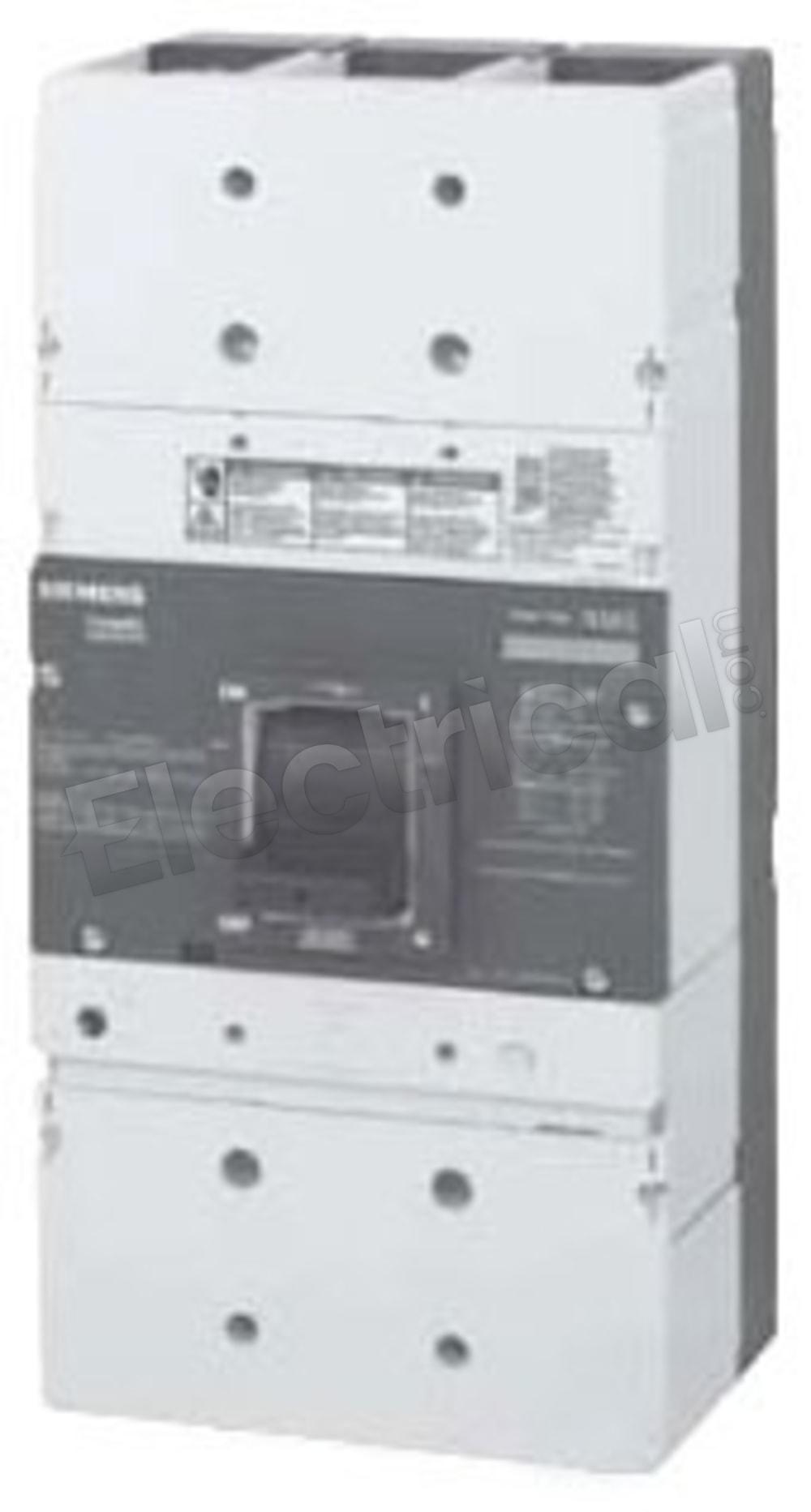

HMG3V600L, Siemens, VL Series, type HMG, 3P, 3PH, 600A, 600V, 65kA@480V, high interrupting capacity, 50°C, Feed-Thru, complete with line & load side lug terminals, Thermal Magnetic molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 600 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 600 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
HMG3V600L Specifications:
Part NumberHMG3V600L
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeHMG
Weight45 lbs
Amperage600
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeMG Frame
Phase3
