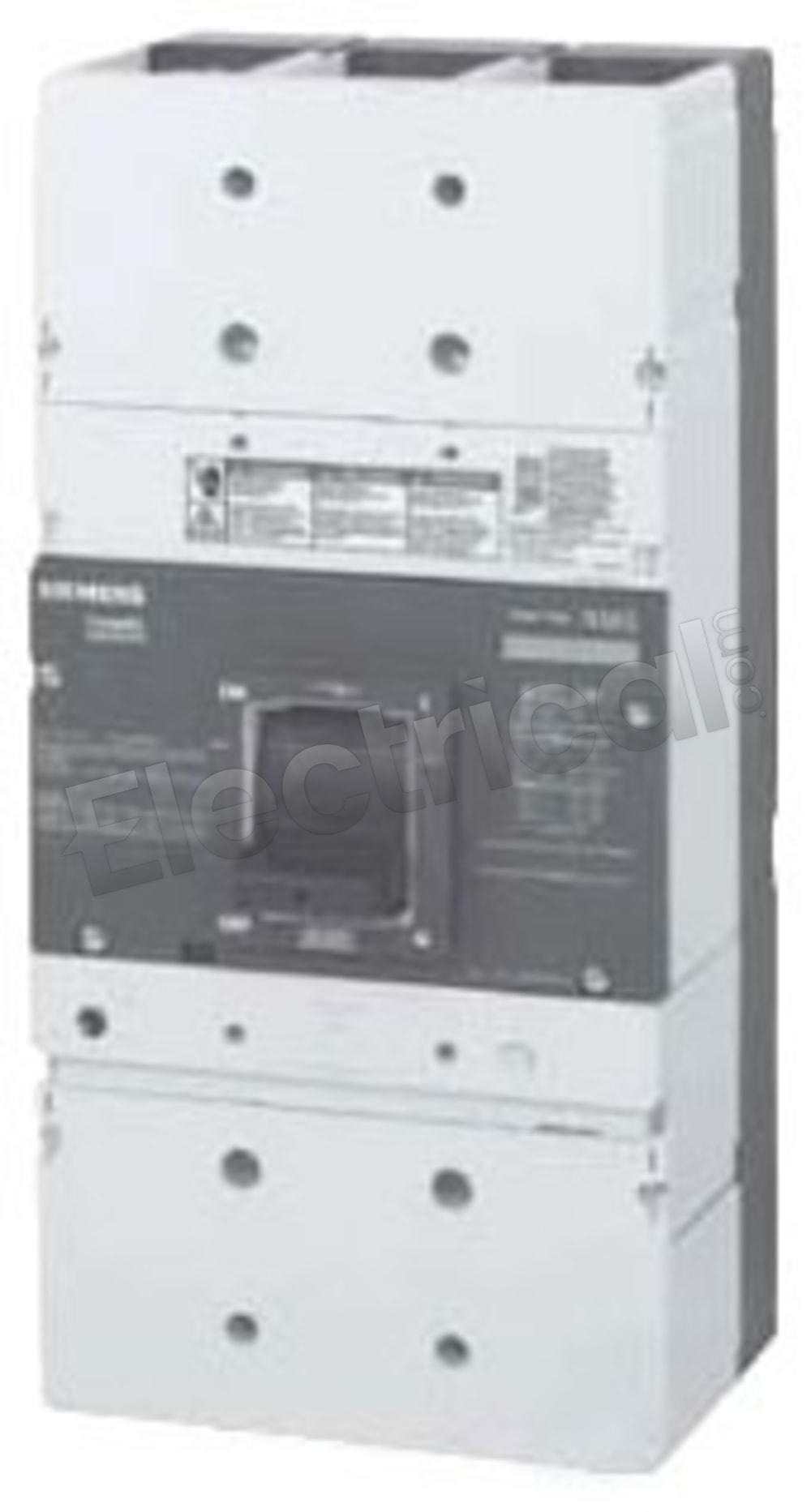

HMY3W800
HMY3W800
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
HMY3W800 Specifications
View Full SpecificationsView Specifications
HMY3W800, Siemens, VL Series, type HMY, 3P, 3PH, 800A, 600V, 65kA@480V, high interrupting capacity, Bolt-On, 100% rated, complete with non-interchangeable trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 800 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 800 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
HMY3W800 Specifications:
Part NumberHMY3W800
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeHMY
Weight40 lbs
Amperage800
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsLIG - Long-Time, Instantaneous and Ground Fault
ProtectionSolid State
ConnectionBolt-On
Frame TypeMG Frame
Phase3
Additional Information
