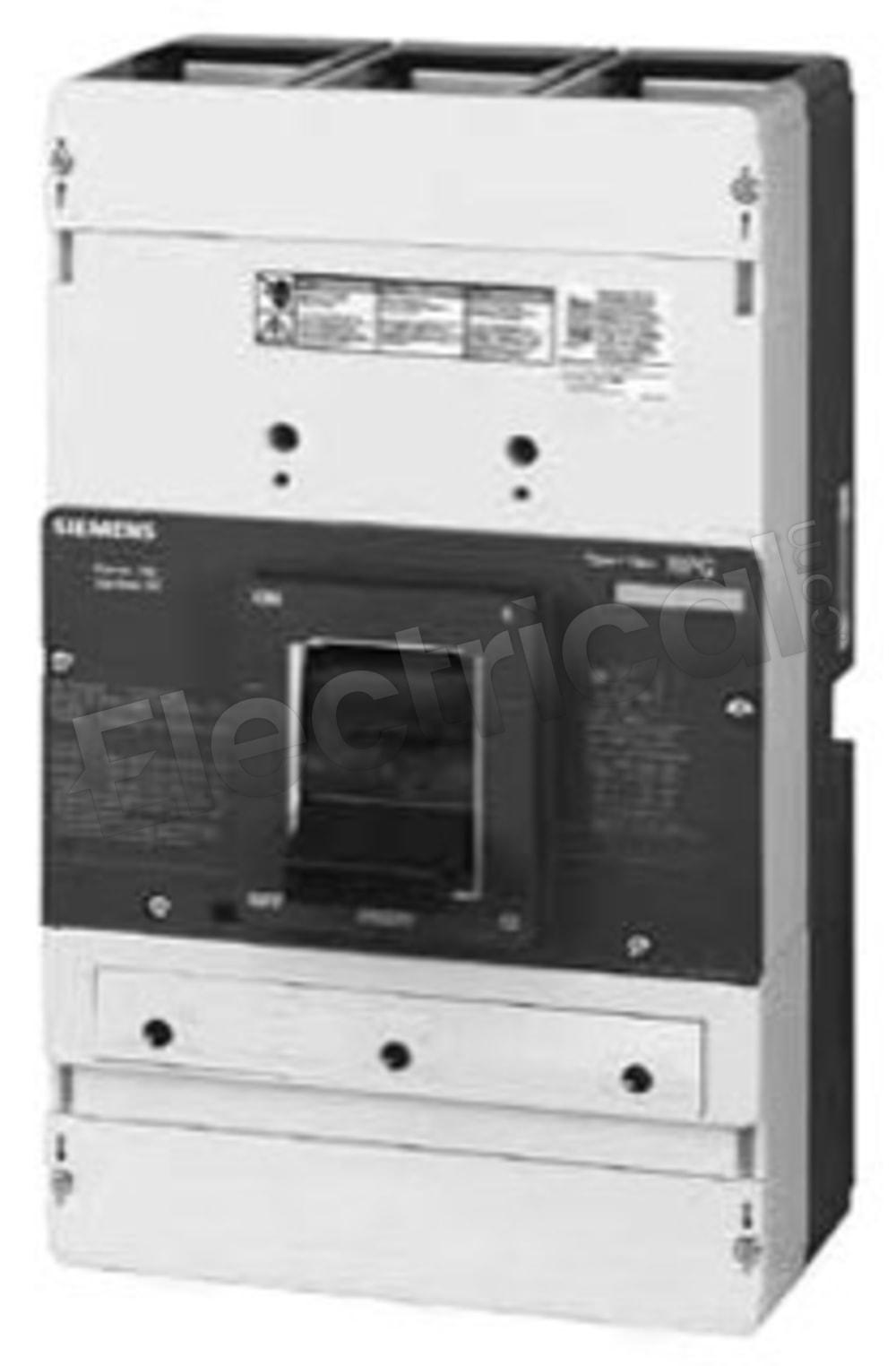

HPG3A120
HPG3A120
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
HPG3A120 Specifications
View Full SpecificationsView Specifications
HPG3A120, Siemens, VL Series, type HPG, 3P, 3PH, 1200A, 600V, 65kA@480V, high interrupting capacity, Bolt-On, interchangeable trip with LCD display, LSI - Long-Time, Short-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 1200 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 1200 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
HPG3A120 Specifications:
Part NumberHPG3A120
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeHPG
Weight79 lbs
Amperage1200
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsLSI - Long-Time, Short-Time and Instantaneous
ProtectionSolid State
ConnectionBolt-On
Frame TypePG Frame
Phase3
