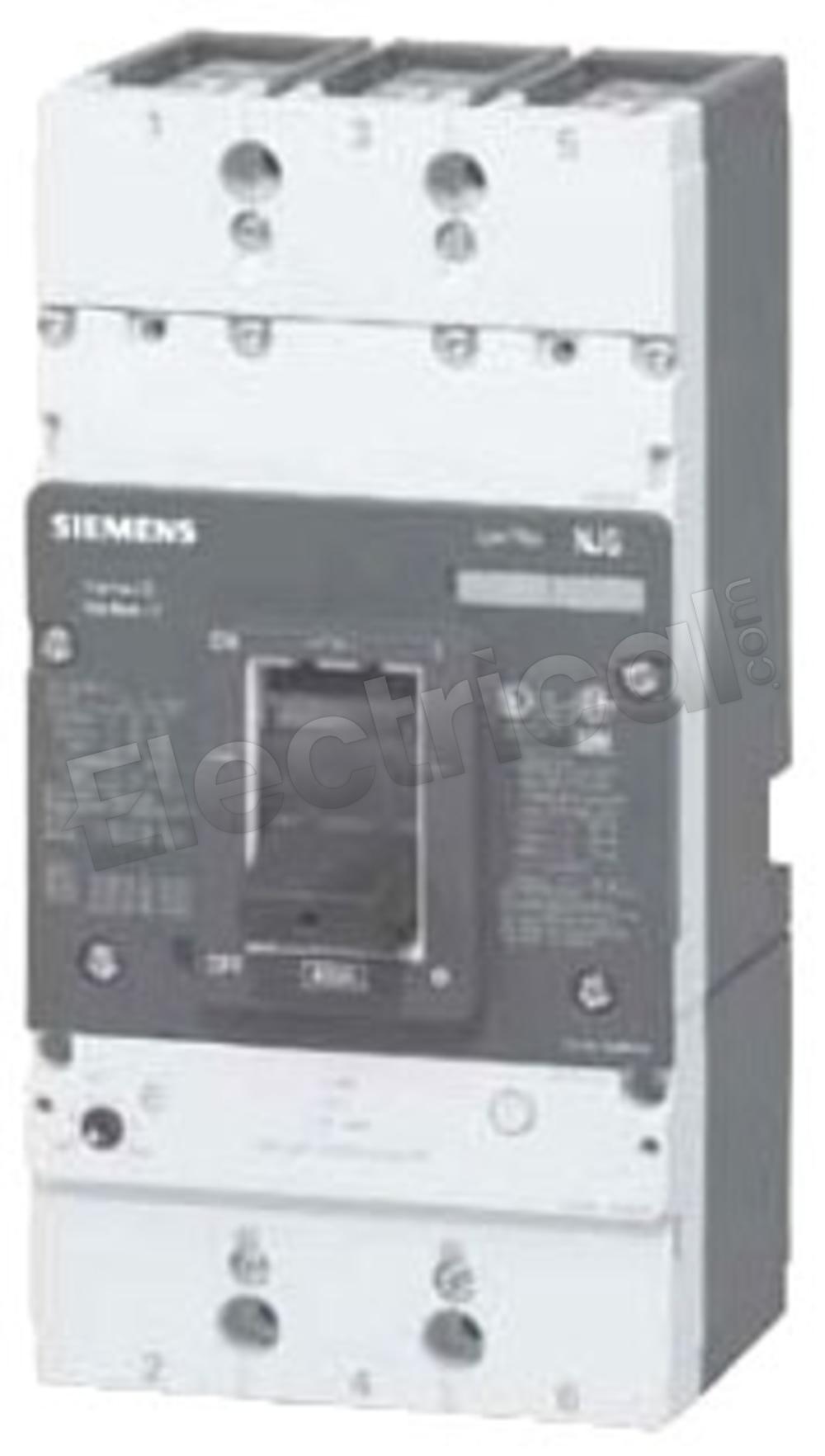

LJX3K400
LJX3K400
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
LJX3K400 Specifications
View Full SpecificationsView Specifications
LJX3K400, Siemens, VL Series, type LJX, 3P, 3PH, 400A, 600V, 100kA@480V, extra high interrupting capacity, Bolt-On, complete with non-interchangeable trip with LCD display, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, lugs not included, Solid State electronic, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 400 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 400 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
LJX3K400 Specifications:
Part NumberLJX3K400
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeLJX
Weight45 lbs
Amperage400
Voltage600
Poles3
AIC Rating100kA@480V
FunctionsLSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
ProtectionSolid State
ConnectionBolt-On
Frame TypeJG Frame
Phase3
Additional Information
