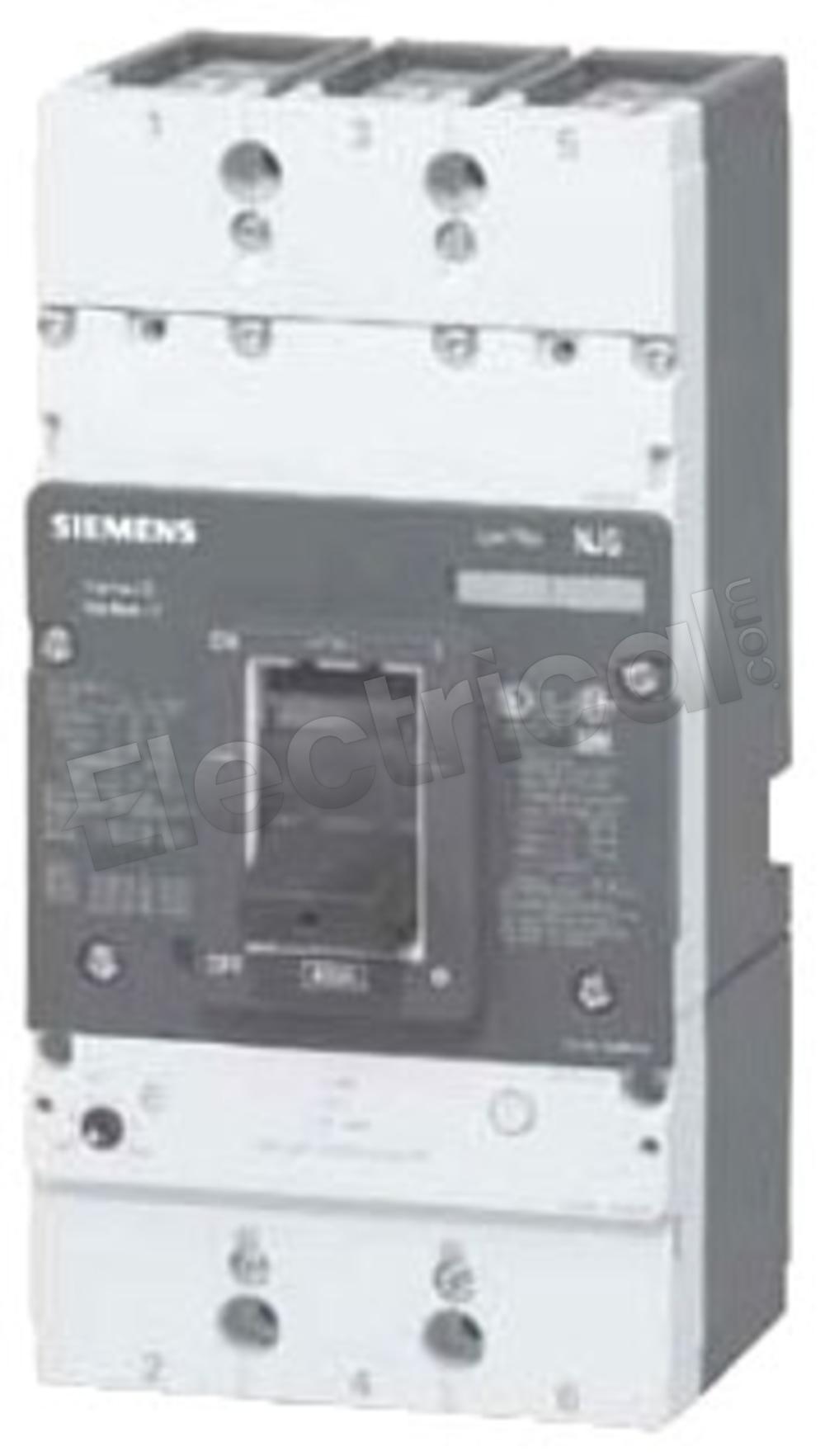

LJY3D250B
LJY3D250B
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
LJY3D250B Specifications
View Full SpecificationsView Specifications
LJY3D250B, Siemens, VL Series, type LJY, JG Frame, 3P, 3PH, 250A, 600V, 100kA@480V, very high interrupting capacity, current limiting, Bolt-On, 100% rated, complete with non-interchangeable LCD trip, LSI - Long-Time, Short-Time and Instantaneous trip functions and load side lug terminals, Digital Solid State Electronic, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 250 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 250 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
LJY3D250B Specifications:
Part NumberLJY3D250B
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeLJY
Weight45 lbs
Amperage250
Voltage600
Poles3
AIC Rating100kA@480V
FunctionsLSI - Long-Time, Short-Time and Instantaneous
ProtectionSolid State
ConnectionBolt-On
Frame TypeJG Frame
Phase3
