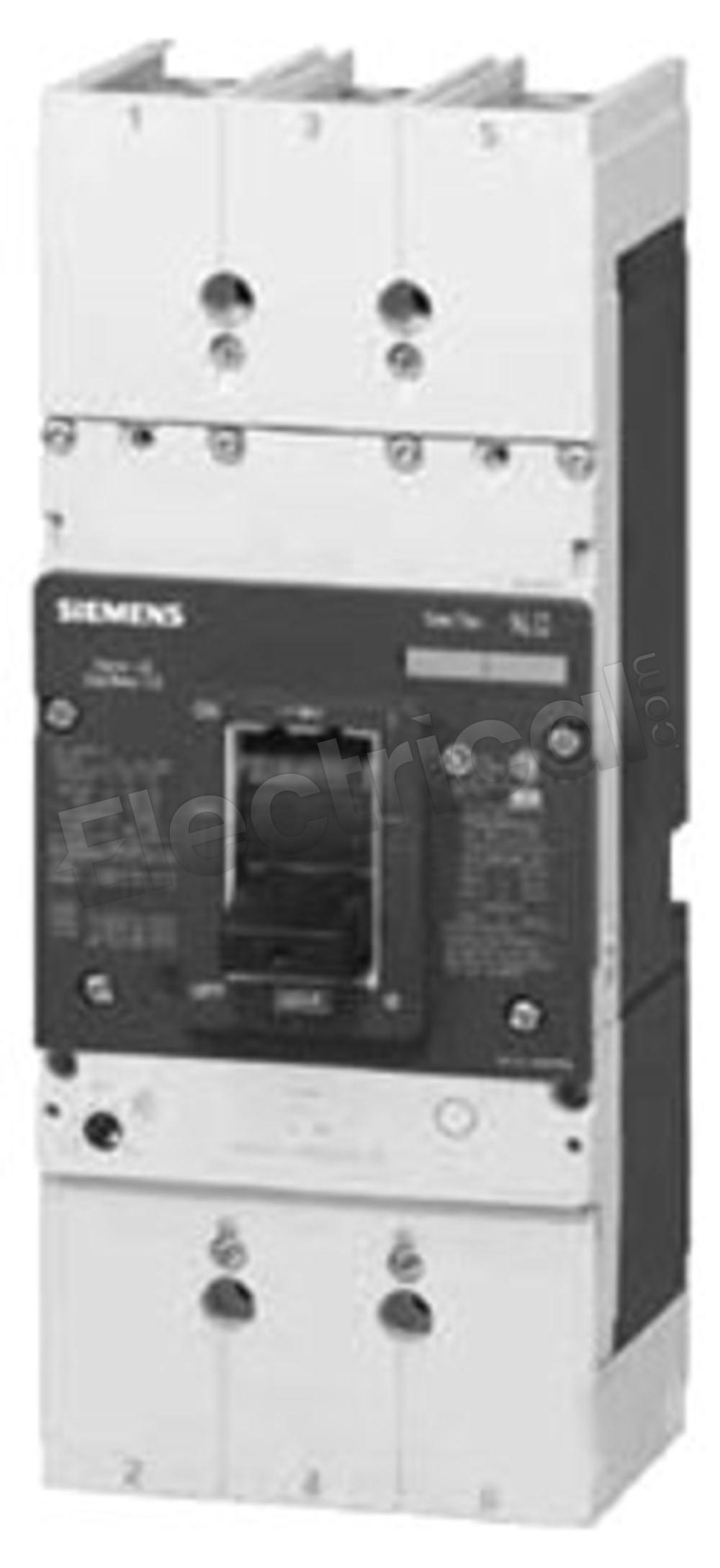

LLK3V400B
LLK3V400B
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
LLK3V400B Specifications
View Full SpecificationsView Specifications
LLK3V400B, Siemens, VL Series, type LLK, 3P, 3PH, 400A, 600V, 100kA@480V, very high interrupting capacity, Bolt-On, complete with non-interchangeable trip, LSIG - Long-Time Short-Time Instantaneous and Ground Fault trip functions, load side lug terminals, Solid State electronic, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 400 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 400 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Siemens and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
LLK3V400B Specifications:
Part NumberLLK3V400B
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeLLK
Weight30 lbs
Amperage400
Voltage600
Poles3
AIC Rating100kA@480V
FunctionsLSIG - Long-Time Short-Time Instantaneous and Ground Fault
ProtectionSolid State
ConnectionBolt-On
Frame TypeLG Frame
Phase3
