LLK3W400B

Siemens - Molded Case

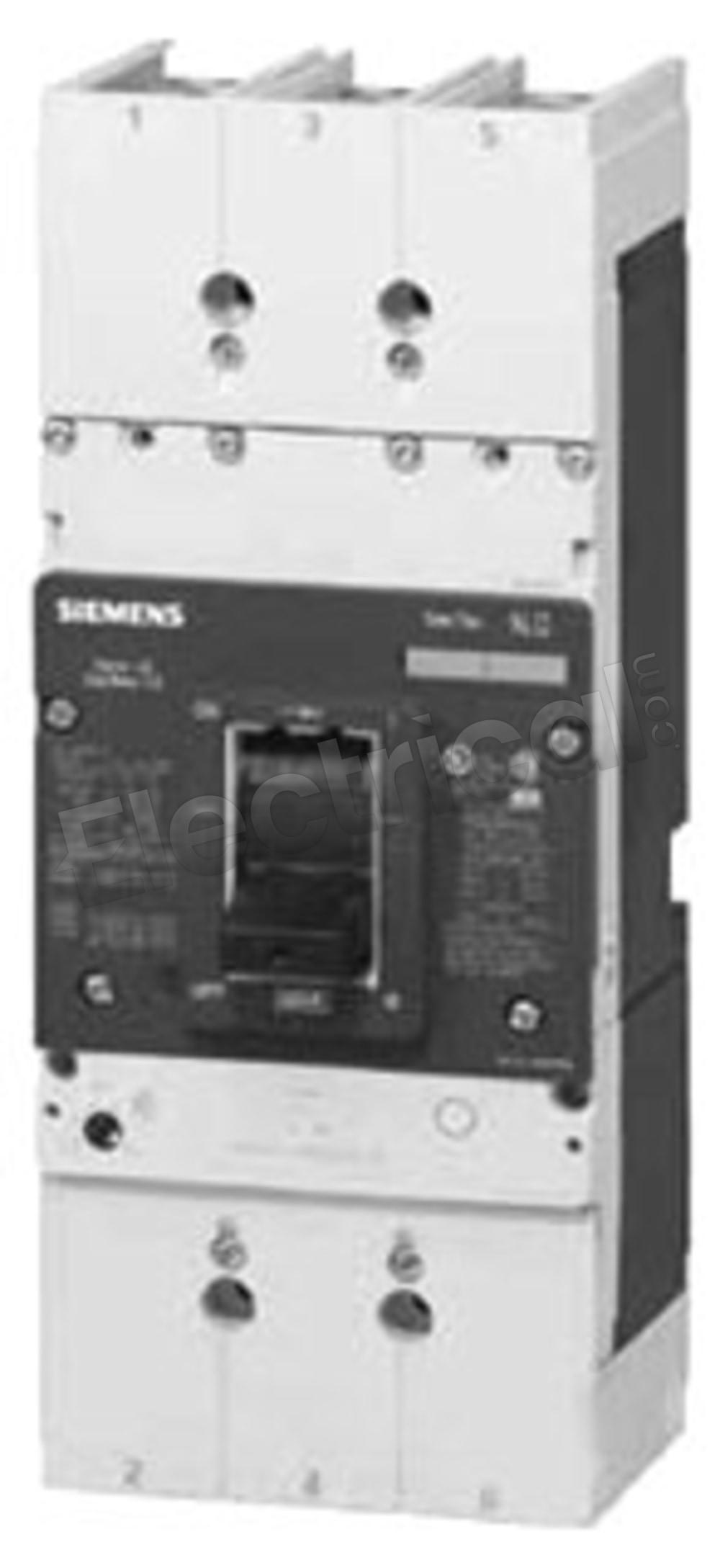

Siemens Molded Case LLK3W400B

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

LLK3W400B Specifications

View Specifications

LLK3W400B, Siemens, VL Series, type LLK, 3P, 3PH, 400A, 600V, 100kA@480V, very high interrupting capacity, Bolt-On, complete with non-interchangeable trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, load side lug terminals, Solid State electronic, molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
VL Series
Amperage
400
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
LLK3W400B Specifications:
Part NumberLLK3W400B
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilyVL Series
TypeLLK
Weight30 lbs
Amperage400
Voltage600
Poles3
AIC Rating100kA@480V
FunctionsLIG - Long-Time, Instantaneous and Ground Fault
ProtectionSolid State
ConnectionBolt-On
Frame TypeLG Frame
Phase3
