1. Circuit Breaker /
  2. Molded Case /
  3. Siemens /

    4. LMY3B700

LMY3B700

Siemens - Molded Case

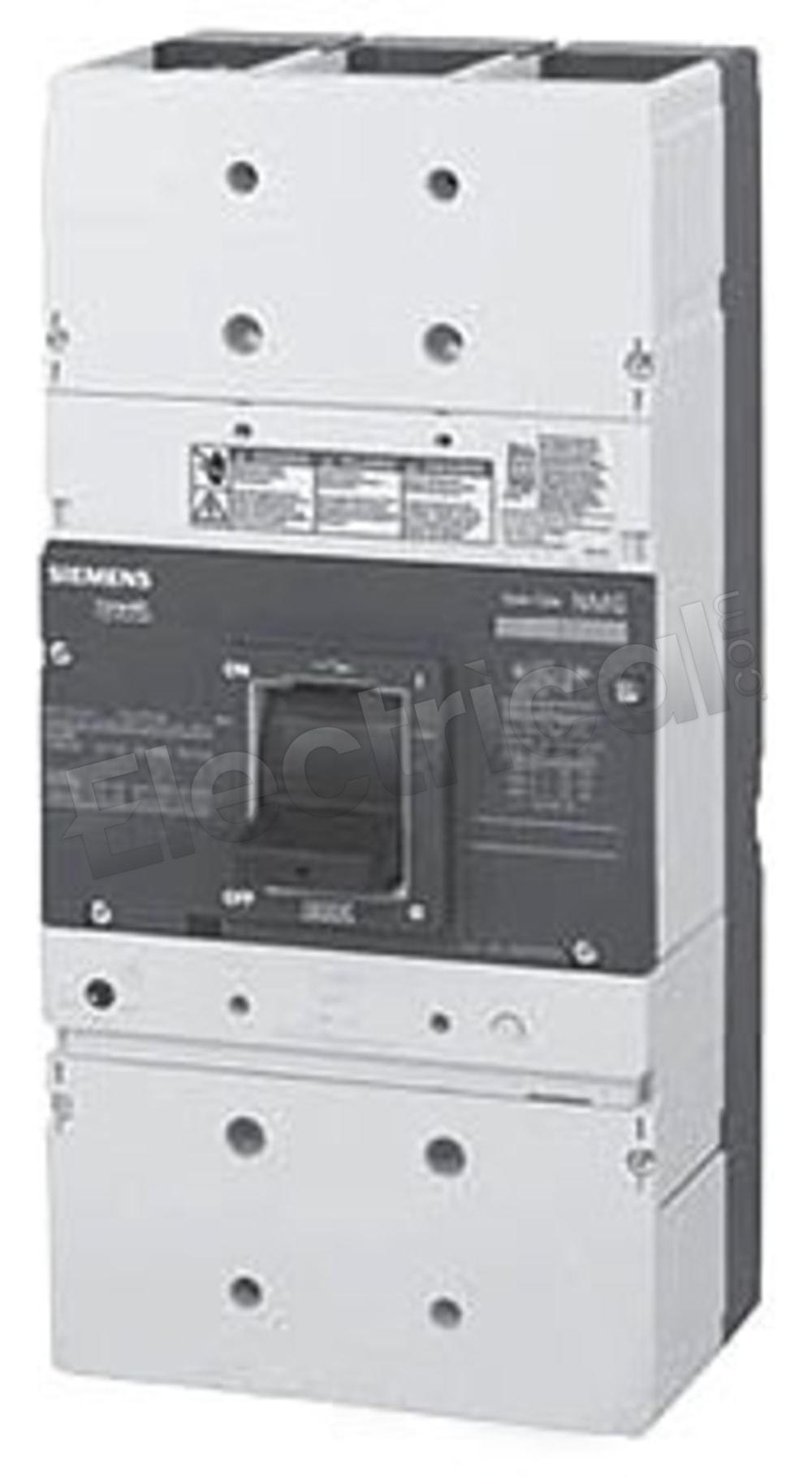

Siemens Molded Case LMY3B700

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

LMY3B700 Specifications

View Specifications

LMY3B700 Siemens VL Series, type LMY, 3P, 3PH, 700A, 600V, 100kA@480V, very high interrupting capacity, 40ºC, Bolt-On, 100% rated, complete with non-interchangeable trip unit, lugs not included, suitable for reverse fed applications, Thermal Magnetic molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
VL Series
Amperage
700
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
LMY3B700 Specifications:
Part NumberLMY3B700
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilyVL Series
TypeLMY
Weight40 lbs
Amperage700
Voltage600
Poles3
AIC Rating100kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Frame TypeMG Frame
Phase3
