    4. LXD62B450

LXD62B450

Siemens - Molded Case

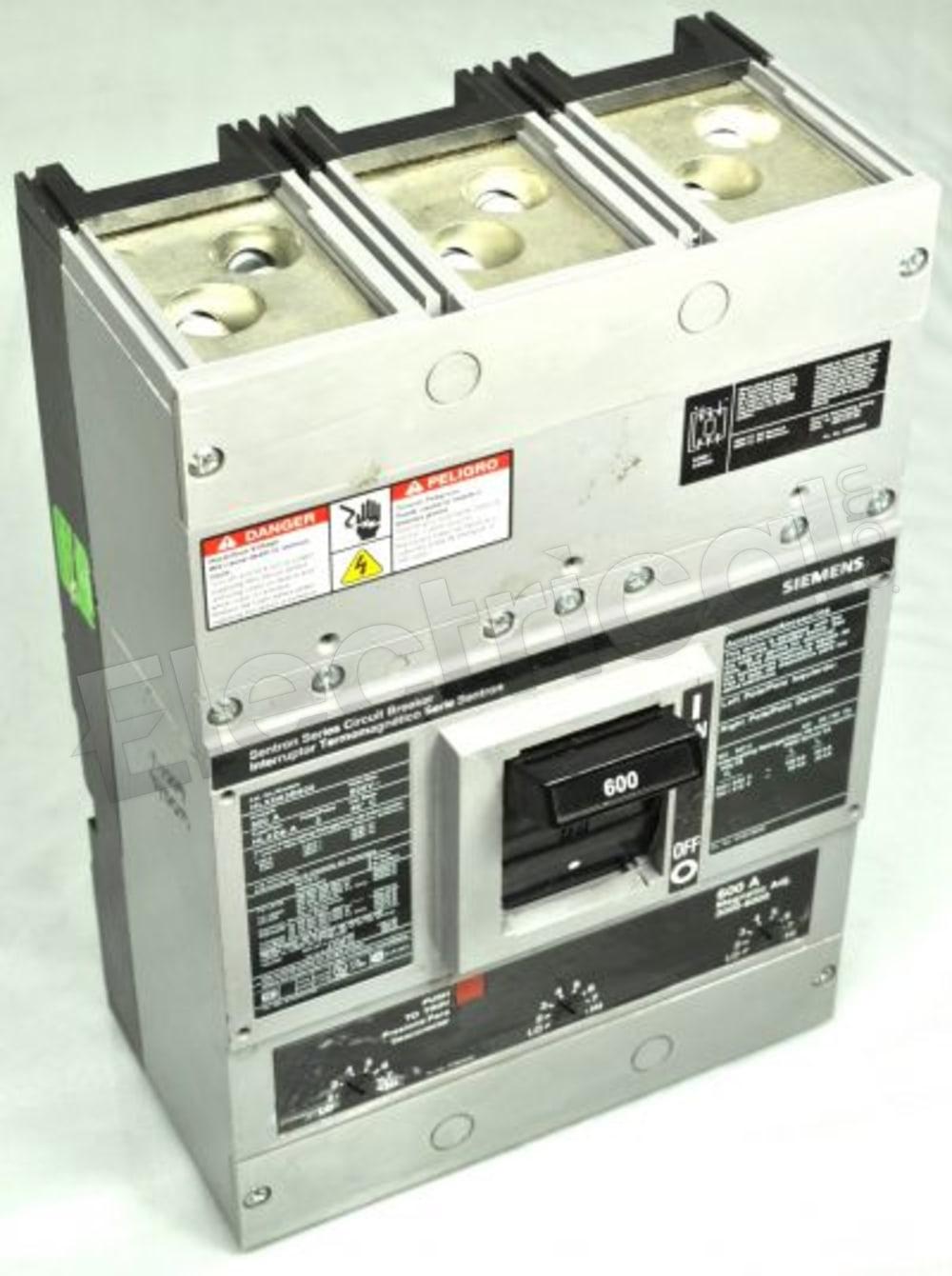

Siemens Molded Case LXD62B450

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

LXD62B450 Specifications

View Specifications

LXD62B450, Siemens, Sentron Series, type LXD, 2P, 1PH, 450A, 600V, 35kA@480V, standard interrupting capacity, Bolt-On, 40? C, UL listed for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic, molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
Sentron Series
Amperage
450
Voltage
600
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
LXD62B450 Specifications:
Part NumberLXD62B450
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilySentron Series
TypeLXD
Weight22 lbs
Amperage450
Voltage600
Poles2
AIC Rating35kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Frame TypeLD Frame
Phase1
