LXD63F600

Siemens - Molded Case

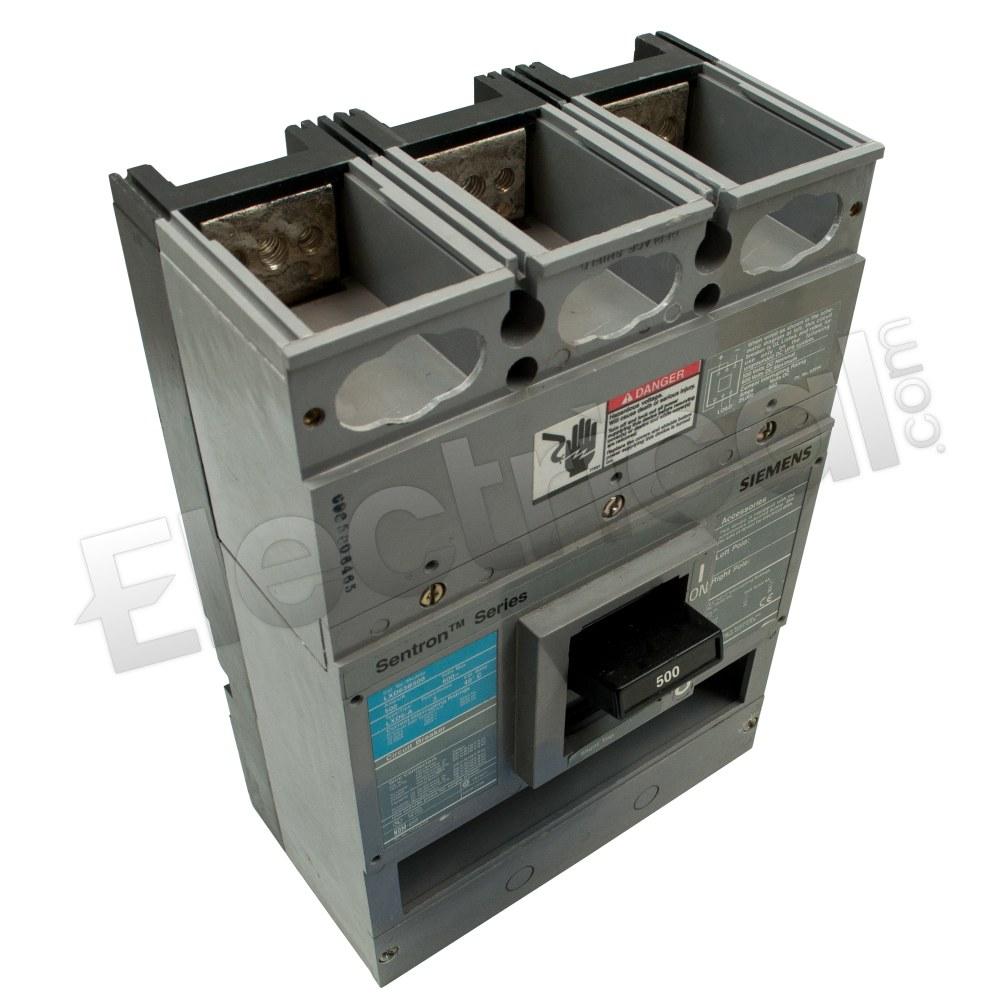

Siemens Molded Case LXD63F600

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

LXD63F600 Specifications

View Specifications

LXD63F600, Siemens, Sentron Series, type LXD, 3P, 3PH, 600A, 600V, 35kA@480V, standard interrupting capacity, Bolt-On, 40º C, UL listed for reverse fed applications, Thermal Magnetic, molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
Sentron Series
Amperage
600
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
LXD63F600 Specifications:
Part NumberLXD63F600
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilySentron Series
TypeLXD
Weight25 lbs
Amperage600
Voltage600
Poles3
AIC Rating35kA@480V
ProtectionThermal Magnetic
ConnectionBolt-On
Frame TypeLD Frame
Phase3
