- Circuit Breaker /
- Molded Case /
- Siemens /
MBK125
MBK125
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
MBK125 Specifications
View Full SpecificationsView Specifications

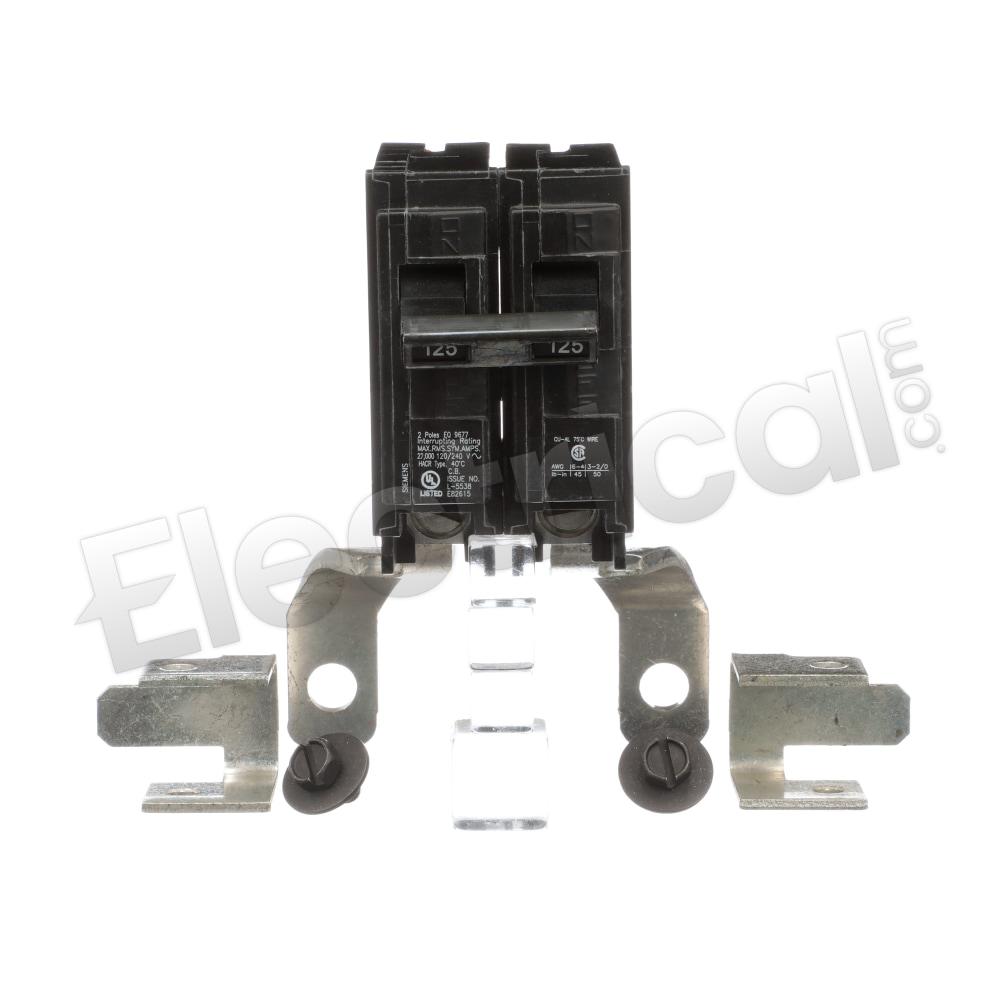

MBK125, Siemens, MBK Series, EQ9676, 2P, 1PH, 125A, 120/240V, 22kA@240V, standard interrupting capacity, Plug-In, suitable for use as main breaker in EQIII load centers, thermal magnetic, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | MBK Series | Amperage | 125 |
| Voltage | 240 | Poles | 2 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | MBK Series | ||
| Amperage | 125 | ||
| Voltage | 240 | ||
| Poles | 2 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
MBK125 Specifications:
Part NumberMBK125
Manufacturers
Sub-CategoryMolded Case
FamilyMBK Series
TypeMBK
Weight2 lbs
Amperage125
Voltage240
Poles2
AIC Rating22kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionPlug-In
Phase1
