MBKFD3225
MBKFD3225
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
MBKFD3225 Specifications
View Full SpecificationsView Specifications

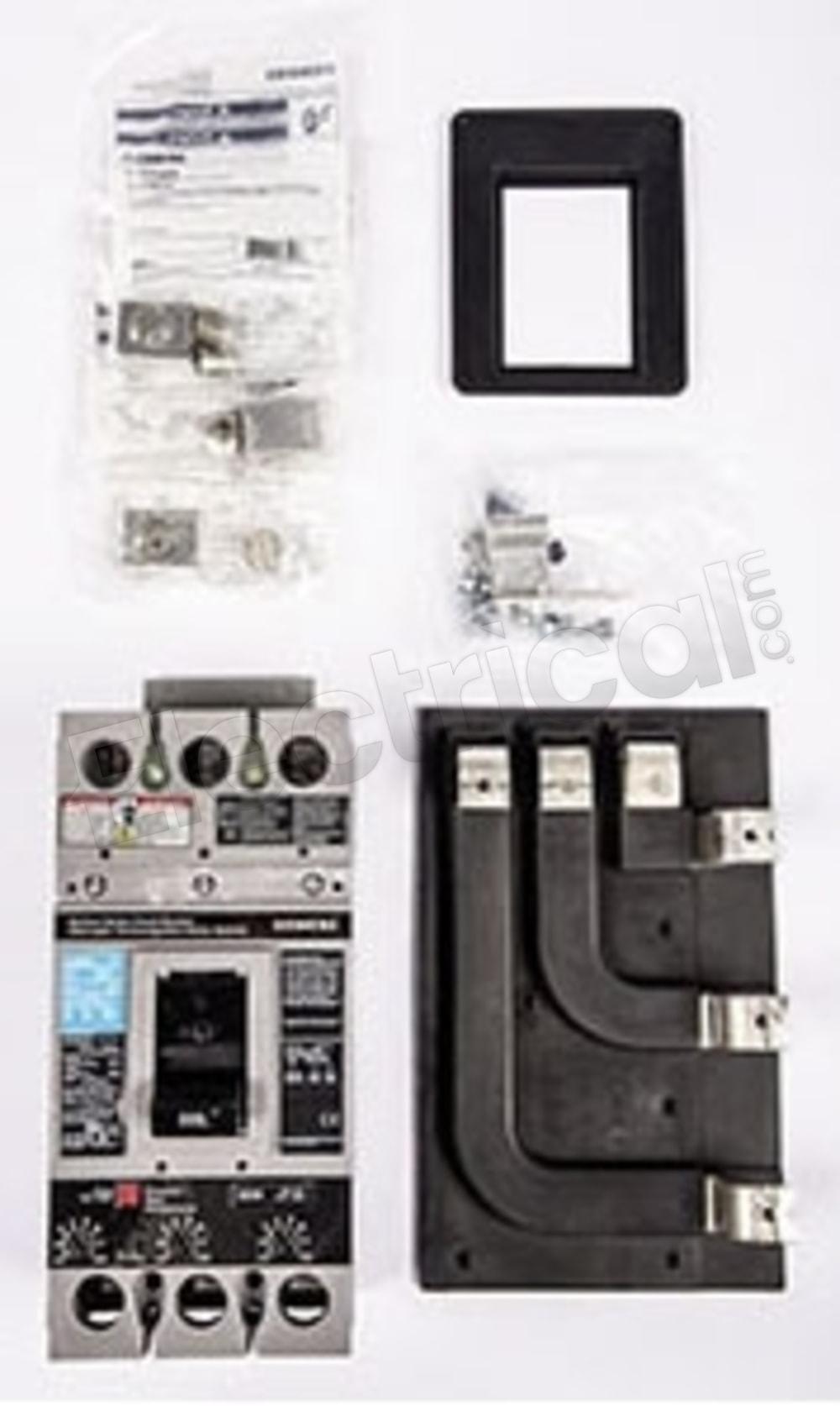

MBKFD3225, Siemens, MBK Series, main breaker kit with 3P FXD6 225A breaker, 3PH, 600V, 35kA@480V, standard interrupting capacity, Bolt-On, includes main breaker & mounting hardware kit, for use in Sentron P1 panelboards
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | MBK Series | Amperage | 225 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | MBK Series | ||
| Amperage | 225 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
MBKFD3225 Specifications:
Part NumberMBKFD3225
Manufacturers
Sub-CategoryMolded Case
FamilyMBK Series
TypeMBKFD
Weight15 lbs
Amperage225
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
