- Circuit Breaker /
- Molded Case /
- Siemens /
MMKB600TC3W
MMKB600TC3W
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
MMKB600TC3W Specifications
View Full SpecificationsView Specifications

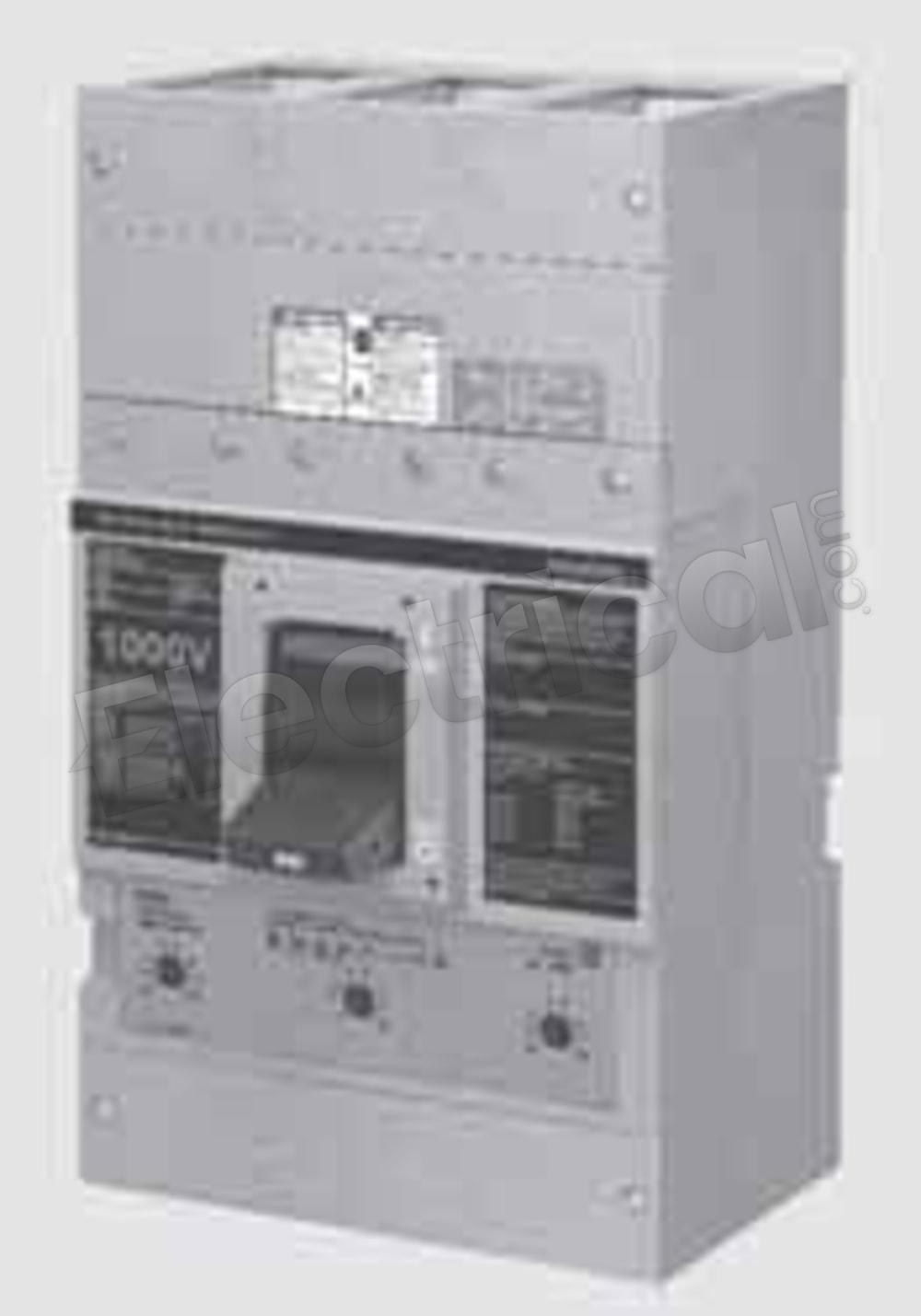

MMKB600TC3W, Siemens, Mining Service, type MMKB, 3P, 3PH, 600A, 1000V, mining duty rated, 25kA@1000V, high interrupting capacity, Bolt-On, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions, lugs not included, trailing cable high range, magnetic range 1250-2500A, Thermal Magnetic, Mining Service molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | Mining Service | Amperage | 600 |
| Voltage | 1000 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | Mining Service | ||
| Amperage | 600 | ||
| Voltage | 1000 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
MMKB600TC3W Specifications:
Part NumberMMKB600TC3W
Manufacturers
Sub-CategoryMolded Case
FamilyMining Service
TypeMMKB
Weight55 lbs
Amperage600
Voltage1000
Poles3
AIC Rating25kA@1000V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
