NDG3B070B
NDG3B070B

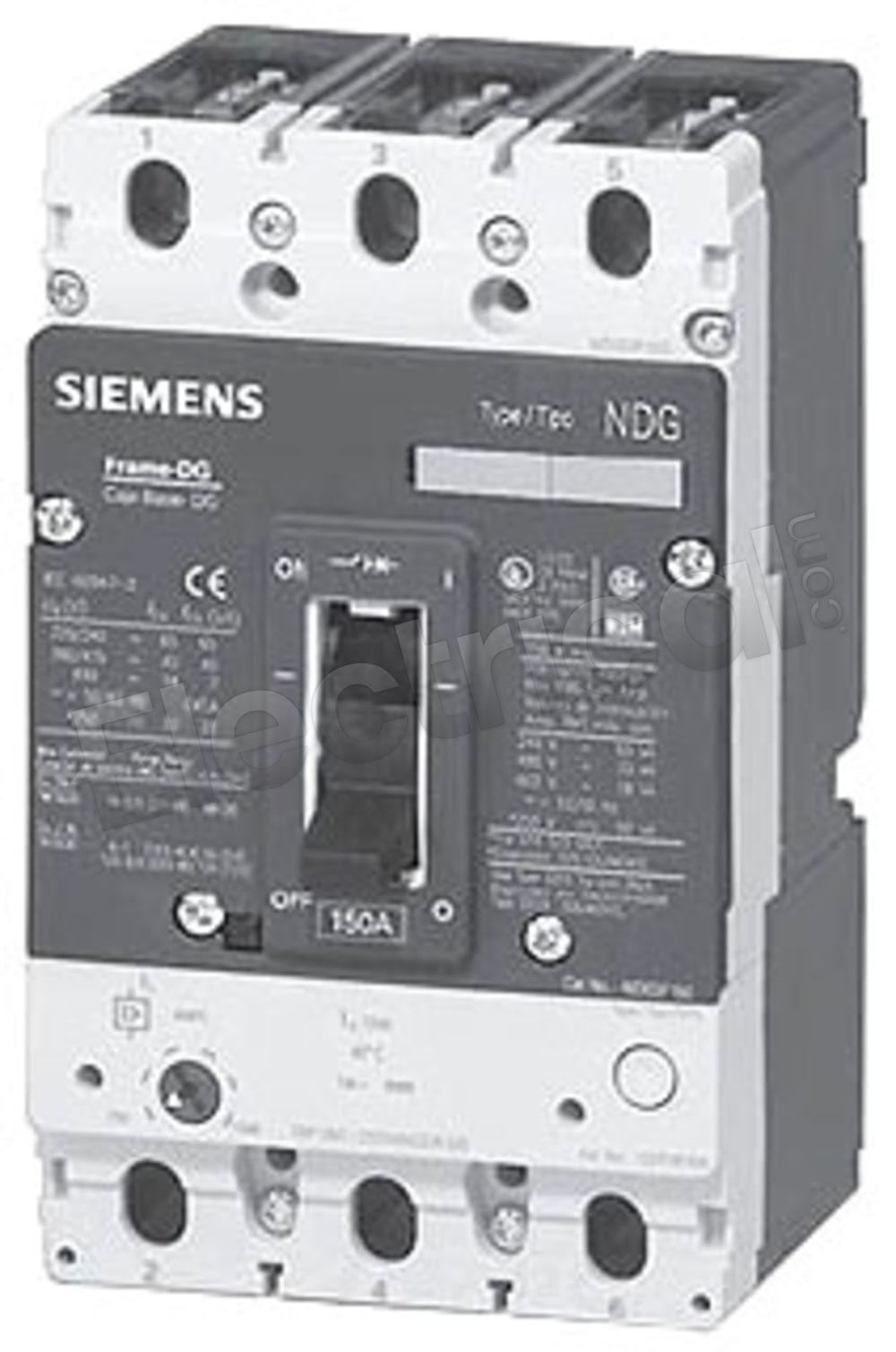

IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
NDG3B070B Specifications
View Full SpecificationsView Specifications
NDG3B070B, Siemens, VL Series, type NDG, 3P, 3PH, 70A, 600V, 35kA@480V, standard interrupting capacity, 40ºC, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 70 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 70 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
NDG3B070B Specifications:
Part NumberNDG3B070B
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeNDG
Weight6 lbs
Amperage70
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Frame TypeDG Frame
Phase3
