NDX3B100

Siemens - Molded Case

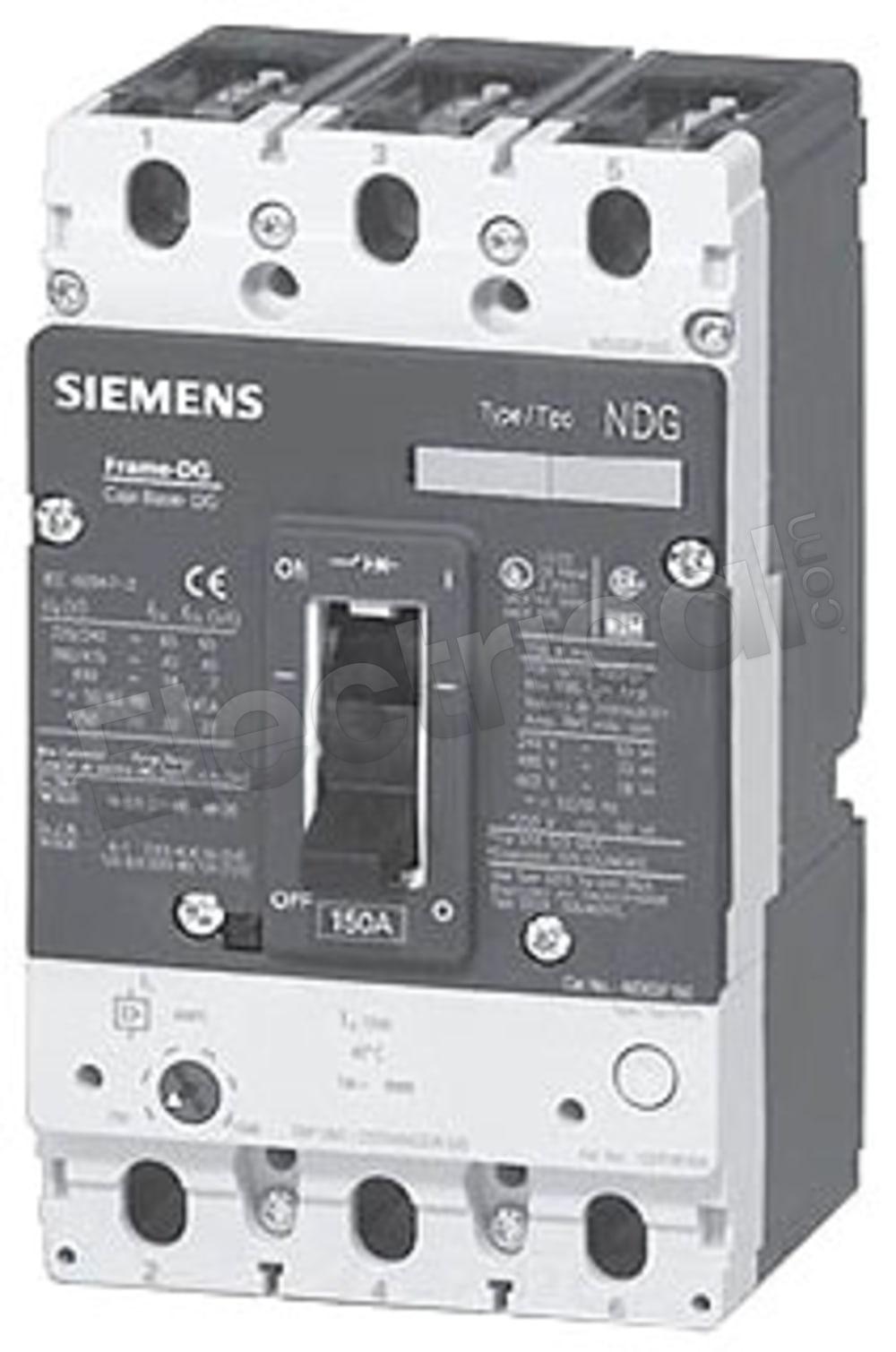

Siemens Molded Case NDX3B100

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

NDX3B100 Specifications

View Specifications

NDX3B100 Siemens VL Series, type NDX, 3P, 3PH, 100A, 600V, 35kA@480V, standard interrupting capacity, 40?C, Bolt-On, complete with non-interchangeable trip unit, lugs not included, suitable for reverse fed applications, Thermal Magnetic molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
VL Series
Amperage
100
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
NDX3B100 Specifications:
Part NumberNDX3B100
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilyVL Series
TypeNDX
Weight7 lbs
Amperage100
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Frame TypeDG Frame
Phase3
