NEG4B090L

Siemens - Molded Case

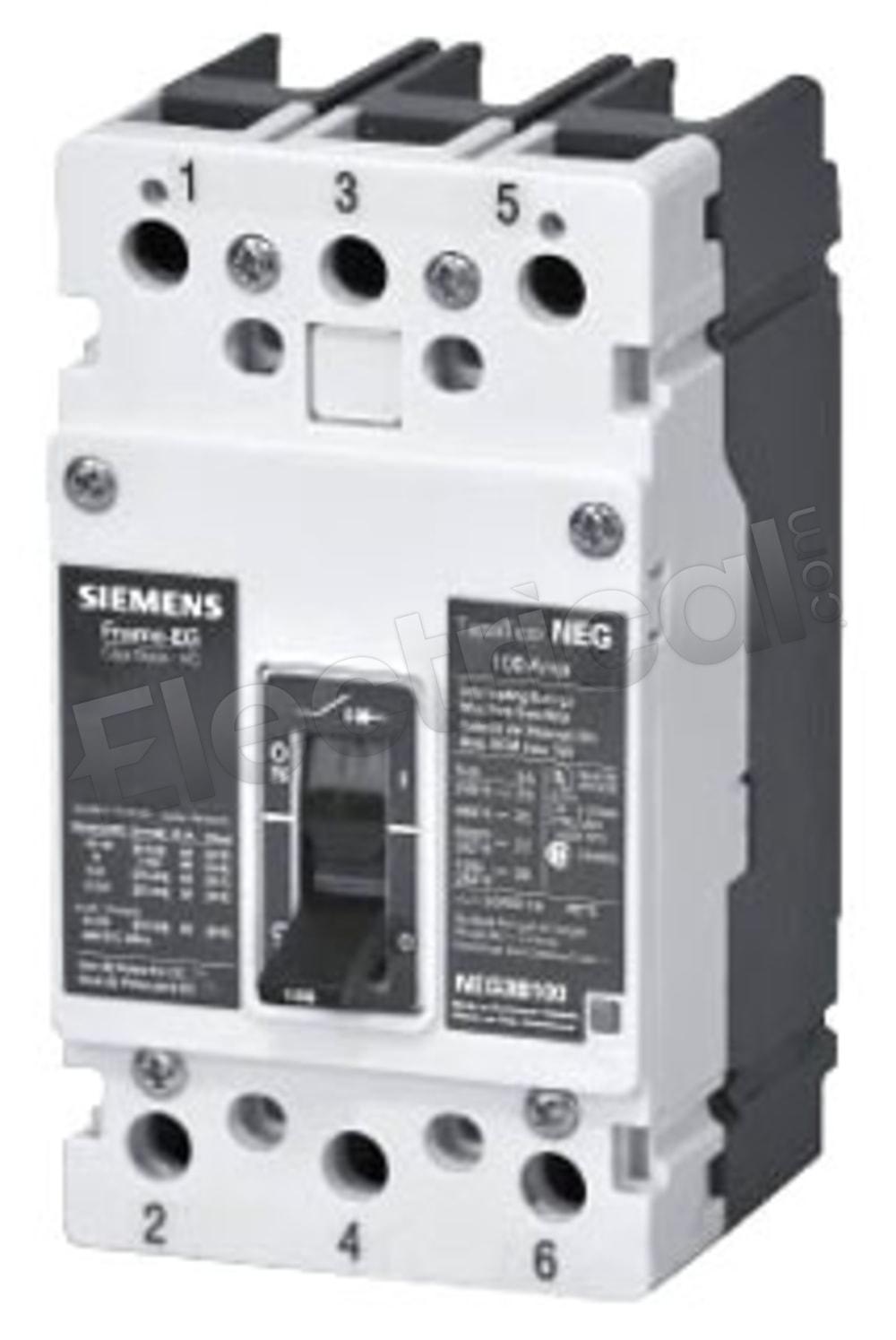

Siemens Molded Case NEG4B090L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

NEG4B090L Specifications

View Specifications

NEG4B090L, Siemens, VL Series, type NEG, 4P, 3PH, 90A, 600V, 35kA@480V, standard interrupting capacity, suitable for reverse feed applications, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
VL Series
Amperage
90
Voltage
600
Poles
4

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
NEG4B090L Specifications:
Part NumberNEG4B090L
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilyVL Series
TypeNEG
Weight5 lbs
Amperage90
Voltage600
Poles4
AIC Rating35kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeEG Frame
Phase3
