NFK3G100L
NFK3G100L
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
NFK3G100L Specifications
View Full SpecificationsView Specifications

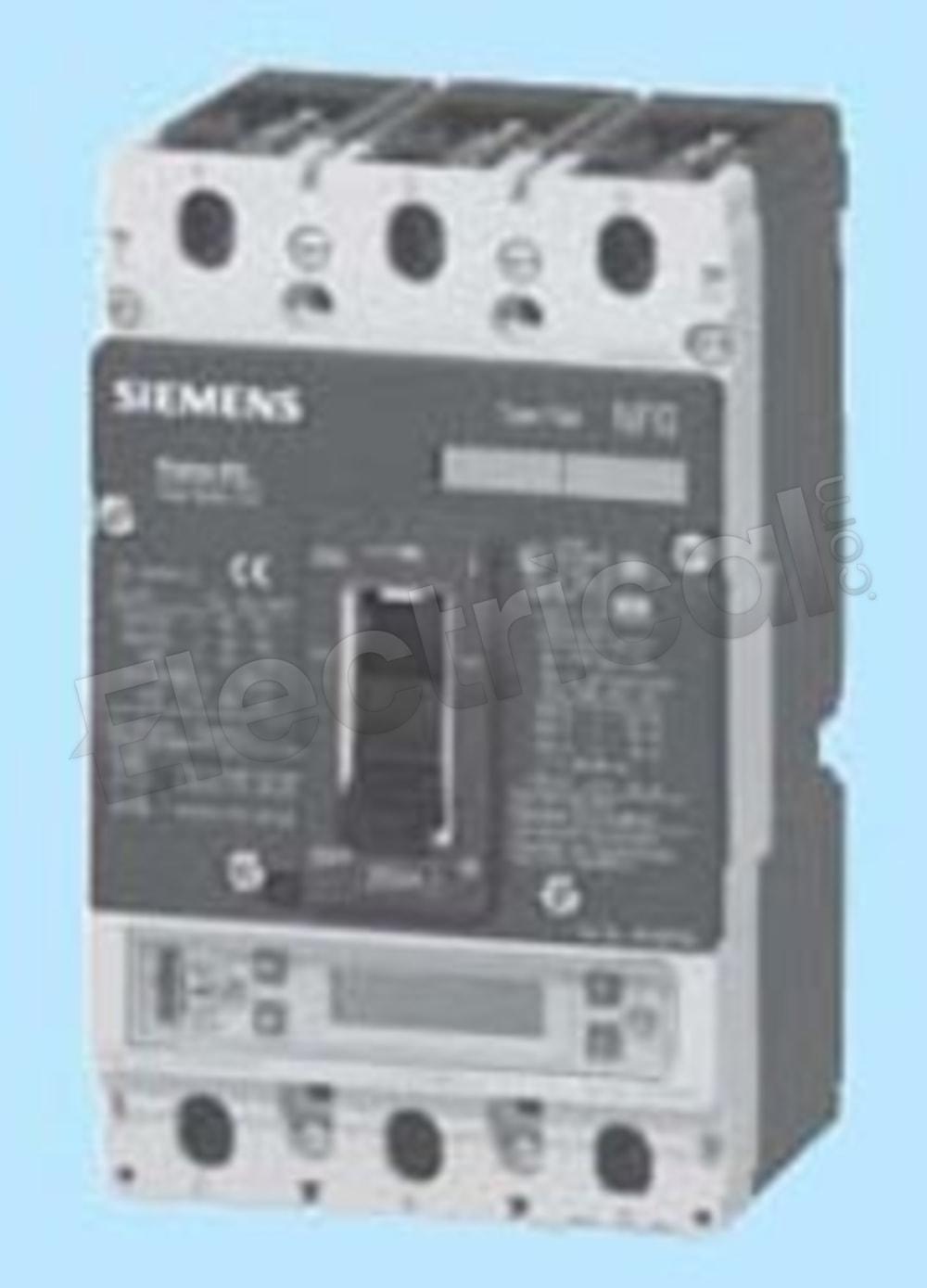

NFK3G100L, Siemens, VL Series, type NFK, FG Frame Frame, 3P, 3PH, 100A, 600V, 35kA@480V, standard interrupting capacity, 40°C, Feed-Thru, with LCD electronic trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, line & load side lug terminals, Solid State electronic, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 100 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 100 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
NFK3G100L Specifications:
Part NumberNFK3G100L
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeNFK
UPC887621133818
Weight6 lbs
Amperage100
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsLSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
ProtectionSolid State
ConnectionFeed-Thru
Frame TypeFG Frame
Phase3
Additional Information
