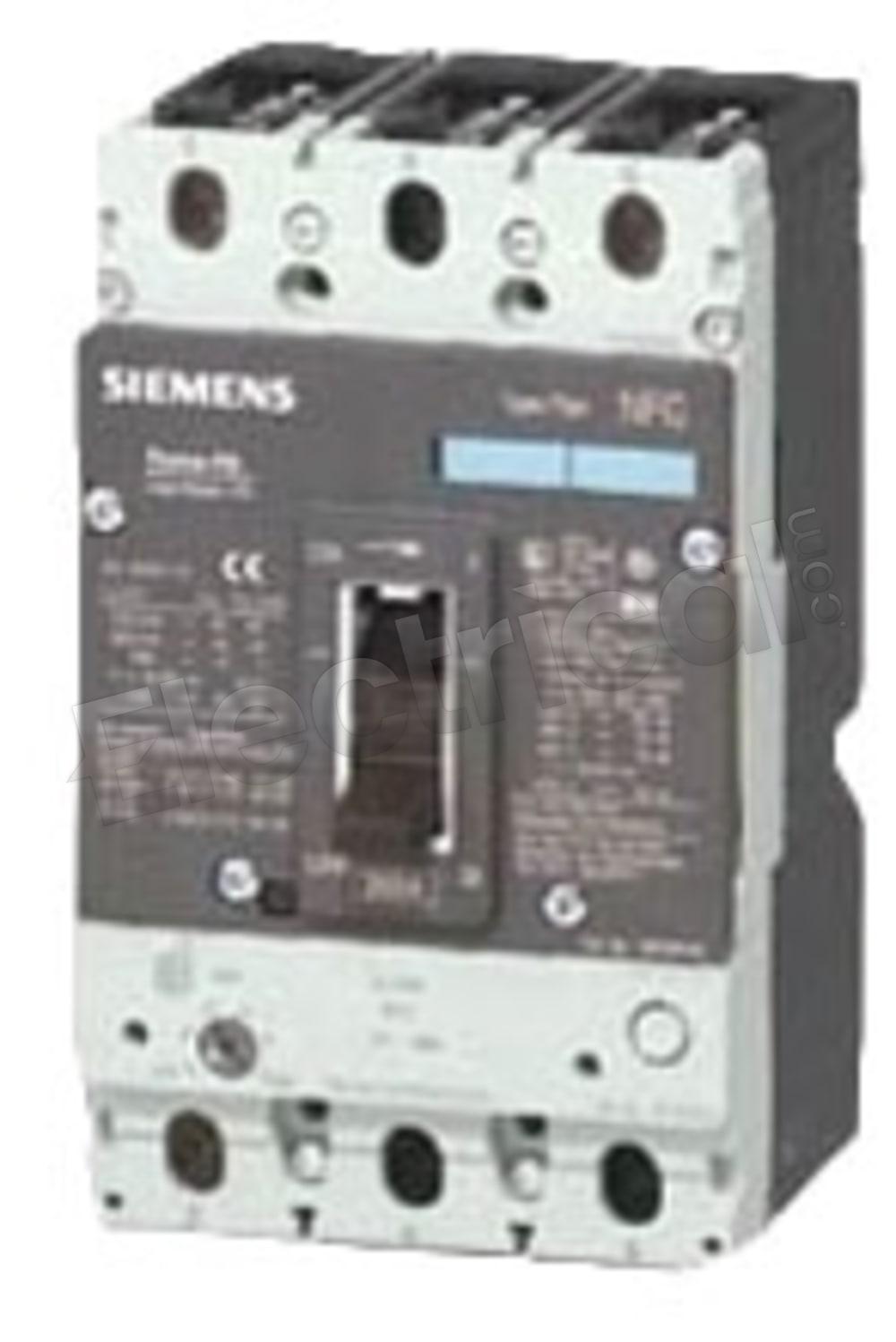

NFX3K250
NFX3K250
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
NFX3K250 Specifications
View Full SpecificationsView Specifications
NFX3K250, Siemens, VL Series, type NFX, 3P, 3PH, 250A, 600V, 35kA@480V, standard interrupting capacity, Bolt-On, complete with non-interchangeable trip with LCD display, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, lugs not included, Solid State electronic, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 250 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 250 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
NFX3K250 Specifications:
Part NumberNFX3K250
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeNFX
Weight7 lbs
Amperage250
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsLSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
ProtectionSolid State
ConnectionBolt-On
Frame TypeFG Frame
Phase3
Additional Information
