NGG1B090

Siemens - Molded Case

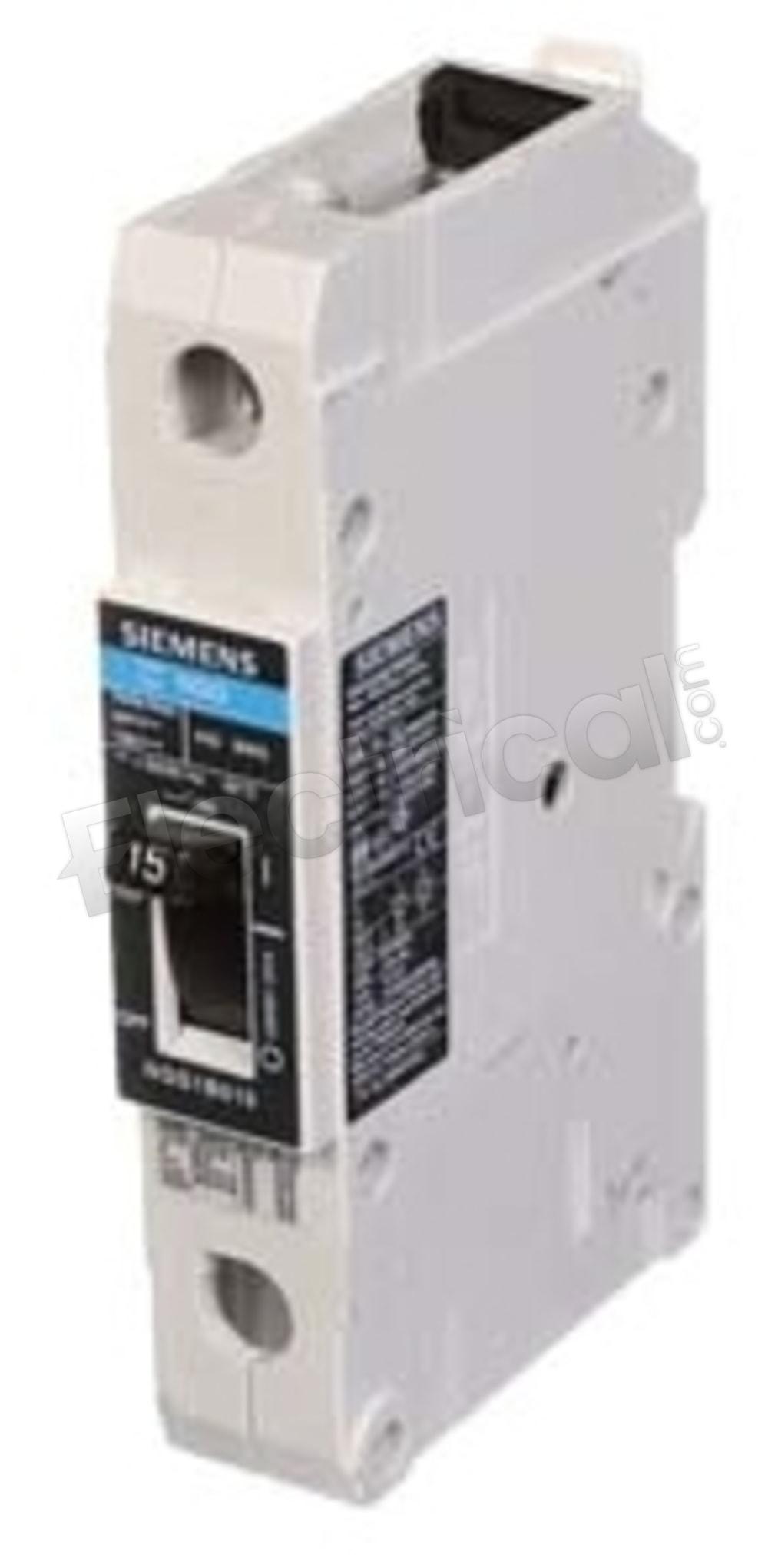

Siemens Molded Case NGG1B090

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

NGG1B090 Specifications

View Specifications

NGG1B090, Siemens, VL Series, type NGG, 1P, 1PH, 90A, 347V, 25kA@277V, standard interrupting capacity, suitable for reverse feed applications and screws or DIN rail mounting, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic, molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
VL Series
Amperage
90
Voltage
347
Poles
1

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
NGG1B090 Specifications:
Part NumberNGG1B090
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilyVL Series
TypeNGG
Amperage90
Voltage347
Poles1
AIC Rating25kA@277V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Frame TypeGG Frame
Phase1
