- Circuit Breaker /
- Molded Case /
- Siemens /
NJY3K250L
NJY3K250L

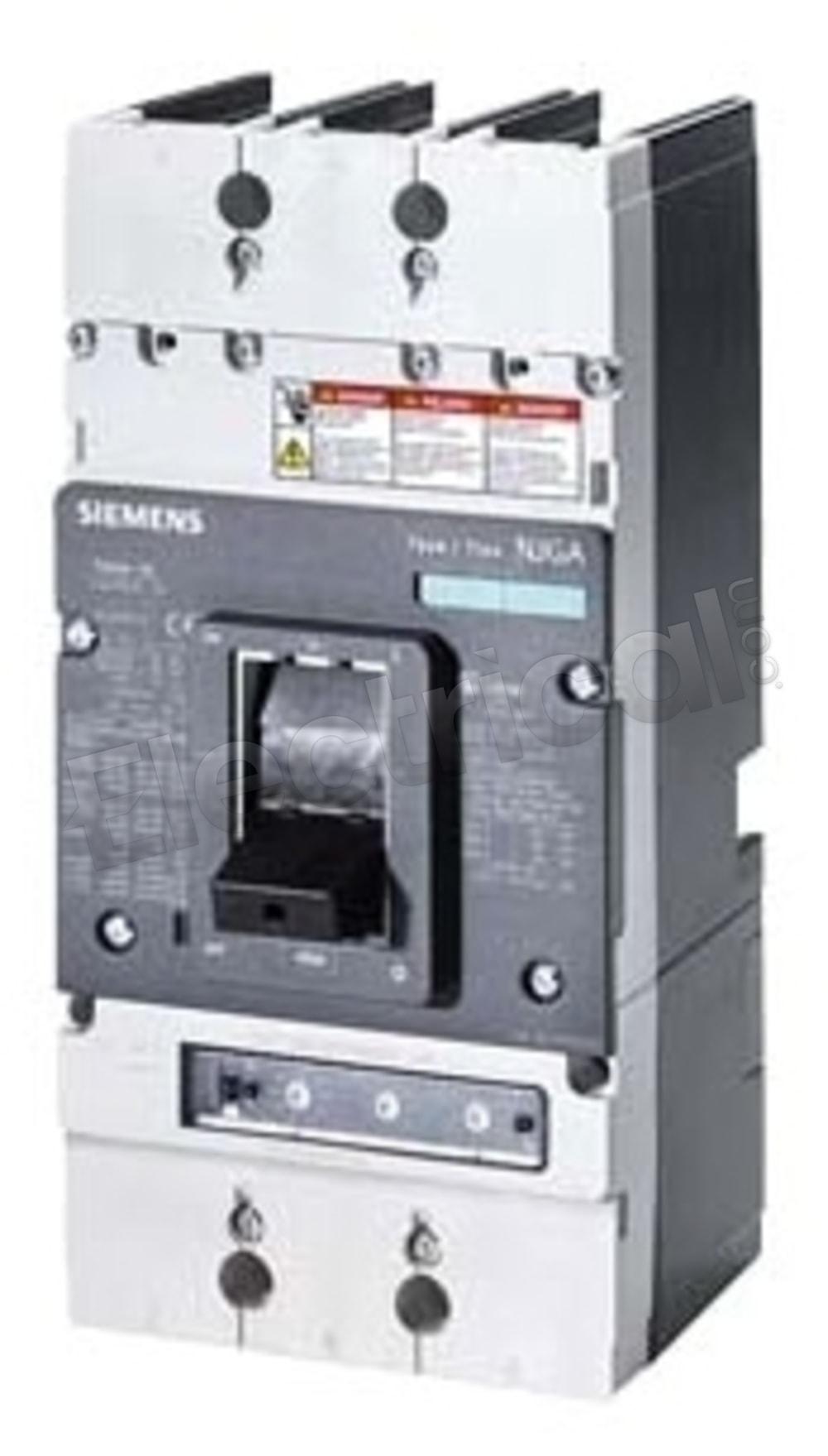

IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
NJY3K250L Specifications
View Full SpecificationsView Specifications
NJY3K250L, Siemens, VL Series, type NJY, 3P, 3PH, 250A, 600V, 35kA@480V, standard interrupting capacity, Feed-Thru, 100% rated, complete with non-interchangeable trip with LCD display, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, line & load side lug terminals, Solid State electronic, molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 250 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 250 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
NJY3K250L Specifications:
Part NumberNJY3K250L
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeNJY
Weight45 lbs
Amperage250
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsLSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
ProtectionSolid State
ConnectionFeed-Thru
Frame TypeJG Frame
Phase3
Additional Information
