NJY3R250L

Siemens - Molded Case

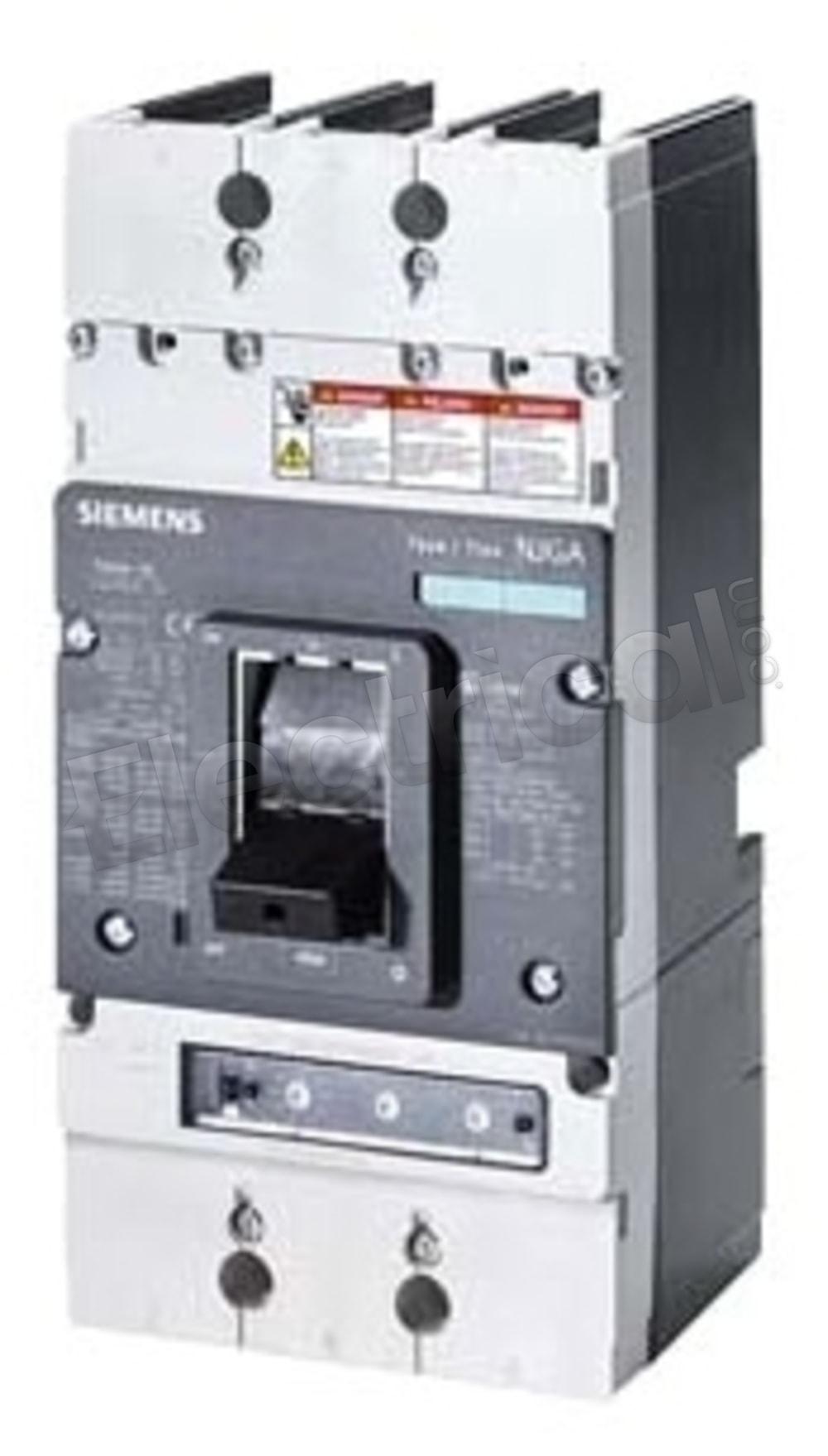

Siemens Molded Case NJY3R250L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

NJY3R250L Specifications

View Specifications

NJY3R250L, Siemens, VL Series, type NJY, 3P, 3PH, 250A, 600V, 35kA@480V, standard interrupting capacity, Feed-Thru, 100% rated, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, line & load side lug terminals, Solid State electronic, molded case circuit breakers

Manufacturer
Siemens
Subcategory
Molded Case
Family
VL Series
Amperage
250
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
NJY3R250L Specifications:
Part NumberNJY3R250L
Manufacturers
Siemens
Sub-CategoryMolded Case
FamilyVL Series
TypeNJY
Weight45 lbs
Amperage250
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionSolid State
ConnectionFeed-Thru
Frame TypeJG Frame
Phase3
