NLK3K600L
NLK3K600L
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
NLK3K600L Specifications
View Full SpecificationsView Specifications

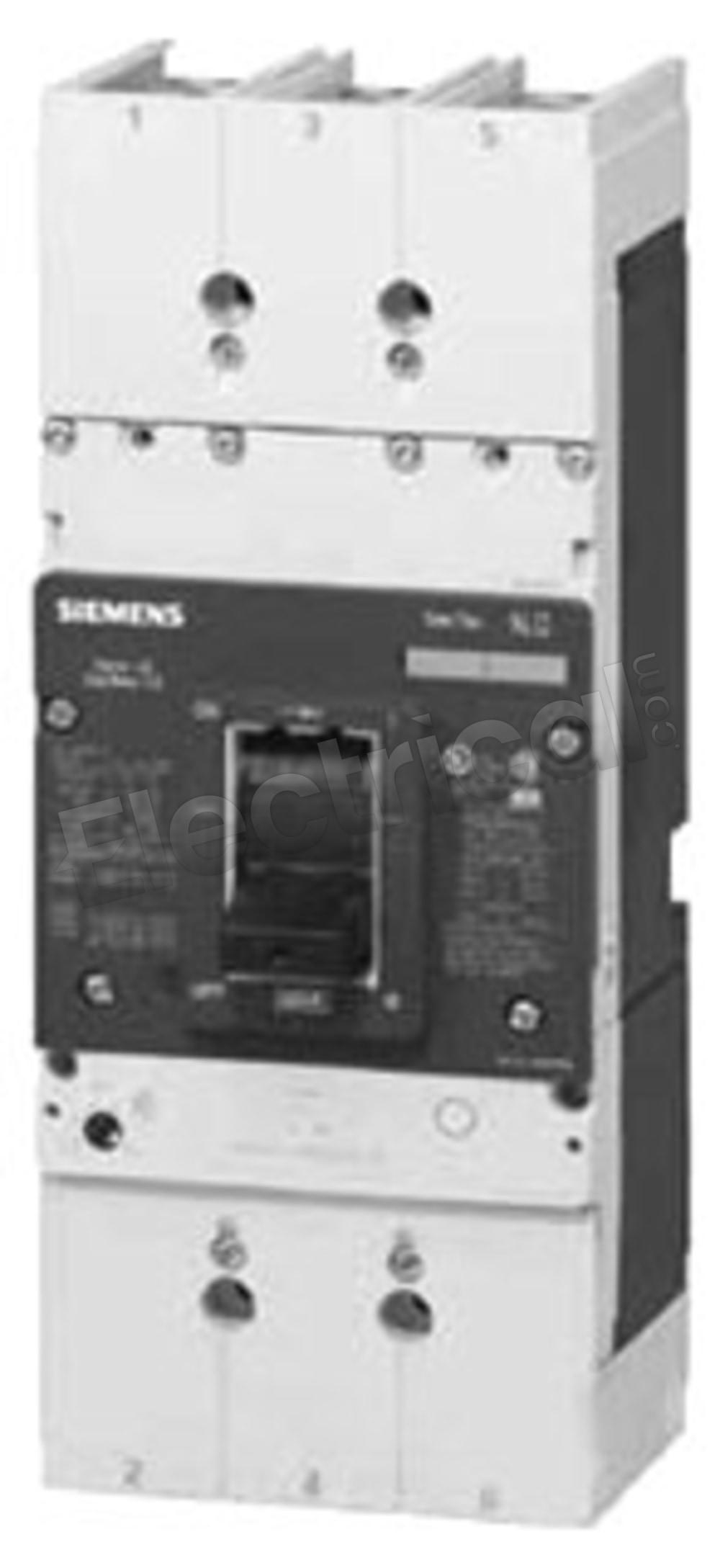

NLK3K600L, Siemens, VL Series, type NLK, 3P, 3PH, 600A, 600V, 35kA@480V, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip with LCD display, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, line & load side lug terminals, Solid State electronic molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 600 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 600 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
NLK3K600L Specifications:
Part NumberNLK3K600L
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeNLK
Weight30 lbs
Amperage600
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsLSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm
ProtectionSolid State
ConnectionFeed-Thru
Frame TypeLG Frame
Phase3
