- Circuit Breaker /
- Molded Case /
- Siemens /

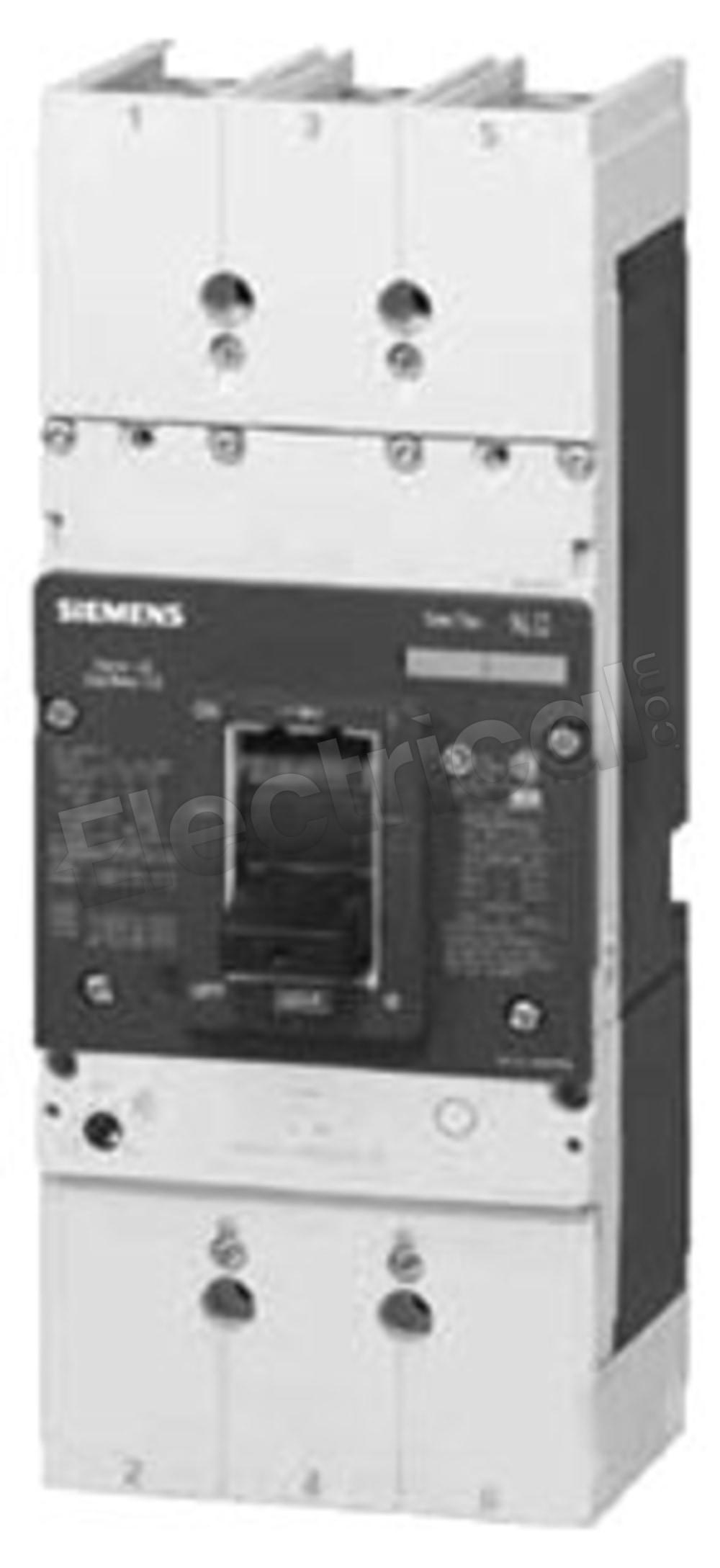

NLK3W600B
NLK3W600B
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
NLK3W600B Specifications
View Full SpecificationsView Specifications
NLK3W600B, Siemens, VL Series, type NLK, 3P, 3PH, 600A, 600V, 35kA@480V, standard interrupting capacity, Bolt-On, complete with non-interchangeable trip, LIG - Long-Time, Instantaneous and Ground Fault trip functions, load side lug terminals, Solid State electronic molded case circuit breakers
| Manufacturer | Siemens | Subcategory | Molded Case |
| Family | VL Series | Amperage | 600 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Siemens | ||
| Subcategory | Molded Case | ||
| Family | VL Series | ||
| Amperage | 600 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
NLK3W600B Specifications:
Part NumberNLK3W600B
Manufacturers
Sub-CategoryMolded Case
FamilyVL Series
TypeNLK
Weight30 lbs
Amperage600
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsLIG - Long-Time, Instantaneous and Ground Fault
ProtectionSolid State
ConnectionBolt-On
Frame TypeLG Frame
Phase3
